secp256k1_mpt.h File Reference

#include <secp256k1.h>
#include <stdint.h>

Include dependency graph for secp256k1_mpt.h:

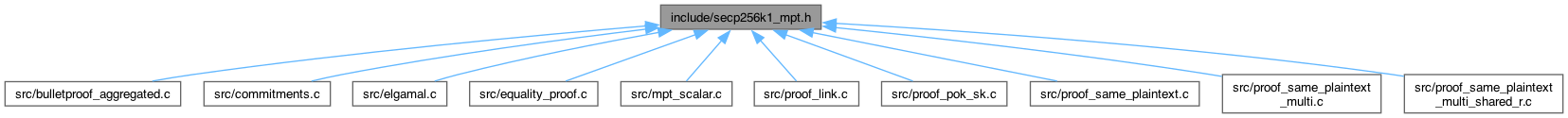

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Functions
SECP256K1_API int	secp256k1_elgamal_generate_keypair (const secp256k1_context *ctx, unsigned char *privkey, secp256k1_pubkey *pubkey)
	Generates a new secp256k1 key pair.
SECP256K1_API int	secp256k1_elgamal_encrypt (const secp256k1_context *ctx, secp256k1_pubkey *c1, secp256k1_pubkey *c2, const secp256k1_pubkey *pubkey_Q, uint64_t amount, const unsigned char *blinding_factor)
	Encrypts a 64-bit amount using ElGamal.
SECP256K1_API int	secp256k1_elgamal_decrypt (const secp256k1_context *ctx, uint64_t *amount, const secp256k1_pubkey *c1, const secp256k1_pubkey *c2, const unsigned char *privkey)
	Decrypts an ElGamal ciphertext to recover the amount.
SECP256K1_API int	secp256k1_elgamal_add (const secp256k1_context *ctx, secp256k1_pubkey *sum_c1, secp256k1_pubkey *sum_c2, const secp256k1_pubkey *a_c1, const secp256k1_pubkey *a_c2, const secp256k1_pubkey *b_c1, const secp256k1_pubkey *b_c2)
	Homomorphically adds two ElGamal ciphertexts.
SECP256K1_API int	secp256k1_elgamal_subtract (const secp256k1_context *ctx, secp256k1_pubkey *diff_c1, secp256k1_pubkey *diff_c2, const secp256k1_pubkey *a_c1, const secp256k1_pubkey *a_c2, const secp256k1_pubkey *b_c1, const secp256k1_pubkey *b_c2)
	Homomorphically subtracts two ElGamal ciphertexts.
SECP256K1_API int	generate_canonical_encrypted_zero (const secp256k1_context *ctx, secp256k1_pubkey *enc_zero_c1, secp256k1_pubkey *enc_zero_c2, const secp256k1_pubkey *pubkey, const unsigned char *account_id, const unsigned char *mpt_issuance_id)
	Generates the canonical encrypted zero for a given MPT token instance.
SECP256K1_API int	secp256k1_equality_plaintext_prove (const secp256k1_context *ctx, unsigned char *proof, const secp256k1_pubkey *c1, const secp256k1_pubkey *c2, const secp256k1_pubkey *pk_recipient, uint64_t amount, const unsigned char *randomness_r, const unsigned char *tx_context_id)
	Generates a proof that an ElGamal ciphertext correctly encrypts a known plaintext m and that the prover knows the randomness r.
SECP256K1_API int	secp256k1_equality_plaintext_verify (const secp256k1_context *ctx, const unsigned char *proof, const secp256k1_pubkey *c1, const secp256k1_pubkey *c2, const secp256k1_pubkey *pk_recipient, uint64_t amount, const unsigned char *tx_context_id)
	Verifies a proof of knowledge of plaintext and randomness.
SECP256K1_API int	secp256k1_mpt_prove_same_plaintext (const secp256k1_context *ctx, unsigned char *proof_out, const secp256k1_pubkey *R1, const secp256k1_pubkey *S1, const secp256k1_pubkey *P1, const secp256k1_pubkey *R2, const secp256k1_pubkey *S2, const secp256k1_pubkey *P2, uint64_t amount_m, const unsigned char *randomness_r1, const unsigned char *randomness_r2, const unsigned char *tx_context_id)
	Generates a proof that two ciphertexts (under different keys) encrypt the same secret amount 'm'.
SECP256K1_API int	secp256k1_mpt_verify_same_plaintext (const secp256k1_context *ctx, const unsigned char *proof, const secp256k1_pubkey *R1, const secp256k1_pubkey *S1, const secp256k1_pubkey *P1, const secp256k1_pubkey *R2, const secp256k1_pubkey *S2, const secp256k1_pubkey *P2, const unsigned char *tx_context_id)
	Verifies a proof that two ciphertexts encrypt the same secret amount.
SECP256K1_API size_t	secp256k1_mpt_prove_same_plaintext_multi_size (size_t n_ciphertexts)
	Calculates the expected proof size for a given number of ciphertexts.
SECP256K1_API int	secp256k1_mpt_prove_same_plaintext_multi (const secp256k1_context *ctx, unsigned char *proof_out, size_t *proof_len, uint64_t amount_m, size_t n_ciphertexts, const secp256k1_pubkey *R_array, const secp256k1_pubkey *S_array, const secp256k1_pubkey *Pk_array, const unsigned char *r_array, const unsigned char *tx_context_id)
	Generates a proof that N ciphertexts encrypt the same secret amount 'm'.
SECP256K1_API int	secp256k1_mpt_verify_same_plaintext_multi (const secp256k1_context *ctx, const unsigned char *proof, size_t proof_len, size_t n_ciphertexts, const secp256k1_pubkey *R_array, const secp256k1_pubkey *S_array, const secp256k1_pubkey *Pk_array, const unsigned char *tx_context_id)
	Verifies a proof that N ciphertexts encrypt the same secret amount.
SECP256K1_API int	secp256k1_bulletproof_create_commitment (const secp256k1_context *ctx, secp256k1_pubkey *commitment_C, uint64_t value, const unsigned char *blinding_factor, const secp256k1_pubkey *pk_base)
	Computes a Pedersen Commitment: C = value*G + blinding_factor*Pk_base.
int	secp256k1_bulletproof_prove (const secp256k1_context *ctx, unsigned char *proof_out, size_t *proof_len, uint64_t value, const unsigned char *blinding_factor, const secp256k1_pubkey *pk_base, const unsigned char *context_id, unsigned int proof_type)
int	secp256k1_bulletproof_verify (const secp256k1_context *ctx, const secp256k1_pubkey *G_vec, const secp256k1_pubkey *H_vec, const unsigned char *proof, size_t proof_len, const secp256k1_pubkey *commitment_C, const secp256k1_pubkey *pk_base, const unsigned char *context_id)
int	secp256k1_elgamal_pedersen_link_prove (const secp256k1_context *ctx, unsigned char *proof, const secp256k1_pubkey *c1, const secp256k1_pubkey *c2, const secp256k1_pubkey *pk, const secp256k1_pubkey *pcm, uint64_t amount, const unsigned char *r, const unsigned char *rho, const unsigned char *context_id)
	Proves the link between an ElGamal ciphertext and a Pedersen commitment.
int	secp256k1_elgamal_pedersen_link_verify (const secp256k1_context *ctx, const unsigned char *proof, const secp256k1_pubkey *c1, const secp256k1_pubkey *c2, const secp256k1_pubkey *pk, const secp256k1_pubkey *pcm, const unsigned char *context_id)
	Verifies the link proof between ElGamal and Pedersen commitments.
int	secp256k1_elgamal_verify_encryption (const secp256k1_context *ctx, const secp256k1_pubkey *c1, const secp256k1_pubkey *c2, const secp256k1_pubkey *pubkey_Q, uint64_t amount, const unsigned char *blinding_factor)
int	secp256k1_mpt_pok_sk_prove (const secp256k1_context *ctx, unsigned char *proof, const secp256k1_pubkey *pk, const unsigned char *sk, const unsigned char *context_id)
int	secp256k1_mpt_pok_sk_verify (const secp256k1_context *ctx, const unsigned char *proof, const secp256k1_pubkey *pk, const unsigned char *context_id)
int	secp256k1_mpt_pedersen_commit (const secp256k1_context *ctx, secp256k1_pubkey *commitment, uint64_t amount, const unsigned char *blinding_factor_rho)
	Creates a Pedersen Commitment C = amount*G + rho*H.
int	secp256k1_mpt_get_h_generator (const secp256k1_context *ctx, secp256k1_pubkey *h)
	Derives the secondary base point (H) for Pedersen commitments.
int	secp256k1_mpt_get_generator_vector (const secp256k1_context *ctx, secp256k1_pubkey *vec, size_t n, const unsigned char *label, size_t label_len)
	Generates a vector of N independent NUMS generators.
void	secp256k1_mpt_scalar_add (unsigned char *res, const unsigned char *a, const unsigned char *b)
void	secp256k1_mpt_scalar_mul (unsigned char *res, const unsigned char *a, const unsigned char *b)
void	secp256k1_mpt_scalar_inverse (unsigned char *res, const unsigned char *in)
void	secp256k1_mpt_scalar_negate (unsigned char *res, const unsigned char *in)
void	secp256k1_mpt_scalar_reduce32 (unsigned char out32[32], const unsigned char in32[32])
size_t	secp256k1_mpt_proof_equality_shared_r_size (size_t n)
int	secp256k1_mpt_prove_equality_shared_r (const secp256k1_context *ctx, unsigned char *proof_out, uint64_t amount, const unsigned char *r_shared, size_t n, const secp256k1_pubkey *C1, const secp256k1_pubkey *C2_vec, const secp256k1_pubkey *Pk_vec, const unsigned char *context_id)
int	secp256k1_mpt_verify_equality_shared_r (const secp256k1_context *ctx, const unsigned char *proof, size_t n, const secp256k1_pubkey *C1, const secp256k1_pubkey *C2_vec, const secp256k1_pubkey *Pk_vec, const unsigned char *context_id)
int	secp256k1_bulletproof_prove_agg (const secp256k1_context *ctx, unsigned char *proof_out, size_t *proof_len, const uint64_t *values, const unsigned char *blindings_flat, size_t m, const secp256k1_pubkey *pk_base, const unsigned char *context_id)
int	secp256k1_bulletproof_verify_agg (const secp256k1_context *ctx, const secp256k1_pubkey *G_vec, const secp256k1_pubkey *H_vec, const unsigned char *proof, size_t proof_len, const secp256k1_pubkey *commitment_C_vec, size_t m, const secp256k1_pubkey *pk_base, const unsigned char *context_id)

Function Documentation

generate_canonical_encrypted_zero()

SECP256K1_API int generate_canonical_encrypted_zero	(	const secp256k1_context *	ctx,
		secp256k1_pubkey *	enc_zero_c1,
		secp256k1_pubkey *	enc_zero_c2,
		const secp256k1_pubkey *	pubkey,
		const unsigned char *	account_id,
		const unsigned char *	mpt_issuance_id )

Generates the canonical encrypted zero for a given MPT token instance.

This ciphertext represents a zero balance for a specific account's holding of a token defined by its MPTokenIssuanceID.

Parameters

[in]	ctx	A pointer to a valid secp256k1 context.
[out]	enc_zero_c1	The C1 component of the canonical ciphertext.
[out]	enc_zero_c2	The C2 component of the canonical ciphertext.
[in]	pubkey	The ElGamal public key of the account holder.
[in]	account_id	A pointer to the 20-byte AccountID.
[in]	mpt_issuance_id	A pointer to the 24-byte MPTokenIssuanceID.

Returns

1 on success, 0 on failure.

Definition at line 211 of file elgamal.c.

Here is the call graph for this function:

secp256k1_bulletproof_create_commitment()

SECP256K1_API int secp256k1_bulletproof_create_commitment	(	const secp256k1_context *	ctx,
		secp256k1_pubkey *	commitment_C,
		uint64_t	value,
		const unsigned char *	blinding_factor,
		const secp256k1_pubkey *	pk_base )

Computes a Pedersen Commitment: C = value*G + blinding_factor*Pk_base.

This function creates the commitment point (C) that the Bulletproof proves the range of. Pk_base is the dynamic secondary generator (H).

Parameters

[in]	ctx	A pointer to the context.
[out]	commitment_C	The resulting commitment point C.
[in]	value	The secret amount v (uint64_t).
[in]	blinding_factor	The secret randomness r (32 bytes).
[in]	pk_base	The recipient's public key (used as the H generator).

Returns

1 on success, 0 on failure.

Computes the Pedersen Commitment: C = value*G + blinding_factor*Pk_base.

Definition at line 1061 of file bulletproof_aggregated.c.

Here is the call graph for this function:

Here is the caller graph for this function:

secp256k1_bulletproof_prove()

int secp256k1_bulletproof_prove	(	const secp256k1_context *	ctx,
		unsigned char *	proof_out,
		size_t *	proof_len,
		uint64_t	value,
		const unsigned char *	blinding_factor,
		const secp256k1_pubkey *	pk_base,
		const unsigned char *	context_id,
		unsigned int	proof_type )

secp256k1_bulletproof_prove_agg()

int secp256k1_bulletproof_prove_agg	(	const secp256k1_context *	ctx,
		unsigned char *	proof_out,
		size_t *	proof_len,
		const uint64_t *	values,
		const unsigned char *	blindings_flat,
		size_t	m,
		const secp256k1_pubkey *	pk_base,
		const unsigned char *	context_id )

Generates an aggregated Bulletproof for m values.

This function constructs a range proof asserting that all m values are within the [0, 2^64) range. The proof is serialized into proof_out.

Inputs:

• values: Array of m 64-bit integers to prove.
• blindings_flat: Array of m 32-byte blinding factors (one per value).
• m: Number of values to aggregate (must be a power of 2).
• pk_base: Generator H used for the commitments (C = vG + rH).
• context_id: Optional 32-byte unique ID to bind the proof to a context.

Outputs:

• proof_out: Buffer to receive the serialized proof.
• proof_len: On input, size of proof_out. On output, actual proof size.

Returns 1 on success, 0 on failure.

Definition at line 1114 of file bulletproof_aggregated.c.

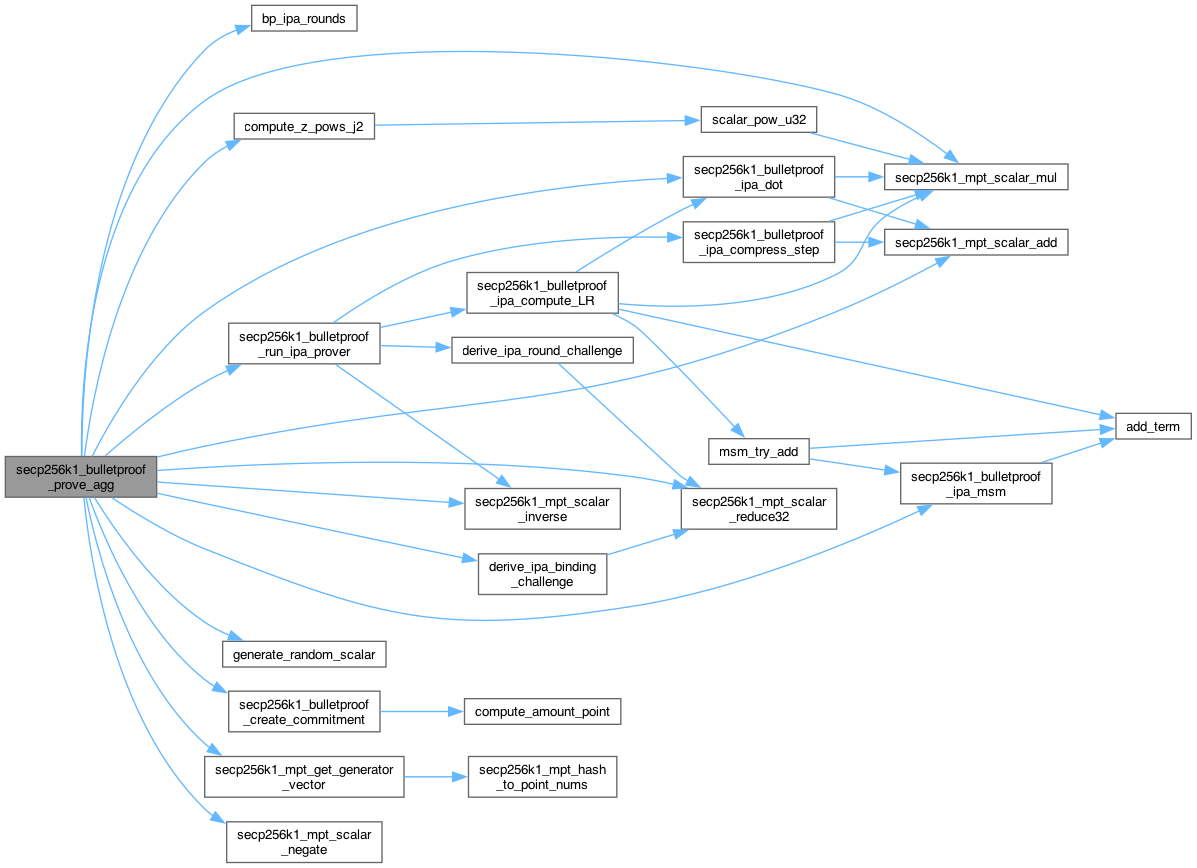

Here is the call graph for this function:

secp256k1_bulletproof_verify()

int secp256k1_bulletproof_verify	(	const secp256k1_context *	ctx,
		const secp256k1_pubkey *	G_vec,
		const secp256k1_pubkey *	H_vec,
		const unsigned char *	proof,
		size_t	proof_len,
		const secp256k1_pubkey *	commitment_C,
		const secp256k1_pubkey *	pk_base,
		const unsigned char *	context_id )

secp256k1_bulletproof_verify_agg()

int secp256k1_bulletproof_verify_agg	(	const secp256k1_context *	ctx,
		const secp256k1_pubkey *	G_vec,
		const secp256k1_pubkey *	H_vec,
		const unsigned char *	proof,
		size_t	proof_len,
		const secp256k1_pubkey *	commitment_C_vec,
		size_t	m,
		const secp256k1_pubkey *	pk_base,
		const unsigned char *	context_id )

Verifies an aggregated Bulletproof range proof for m commitments.

Checks that the values committed in commitment_C_vec are all within the [0, 2^64) range.

Usage Notes:

• The generator vectors G_vec and H_vec must have length n = 64 * m.
• The commitment array commitment_C_vec must contain m elements. (For a single proof where m=1, pass a pointer to the single commitment).
• To bind commitments to the proof transcript, include them in the context_id hash before calling this function.

Serialized Proof Format:

• A, S, T1, T2 (4 * 33 bytes)
• L_vec (rounds * 33 bytes)
• R_vec (rounds * 33 bytes)
• a, b (2 * 32 bytes)
• t_hat, tau_x, mu (3 * 32 bytes)

Total Size: 292 + (66 * rounds) bytes, where rounds = log2(64 * m).

Returns 1 if valid, 0 otherwise.

Definition at line 1715 of file bulletproof_aggregated.c.

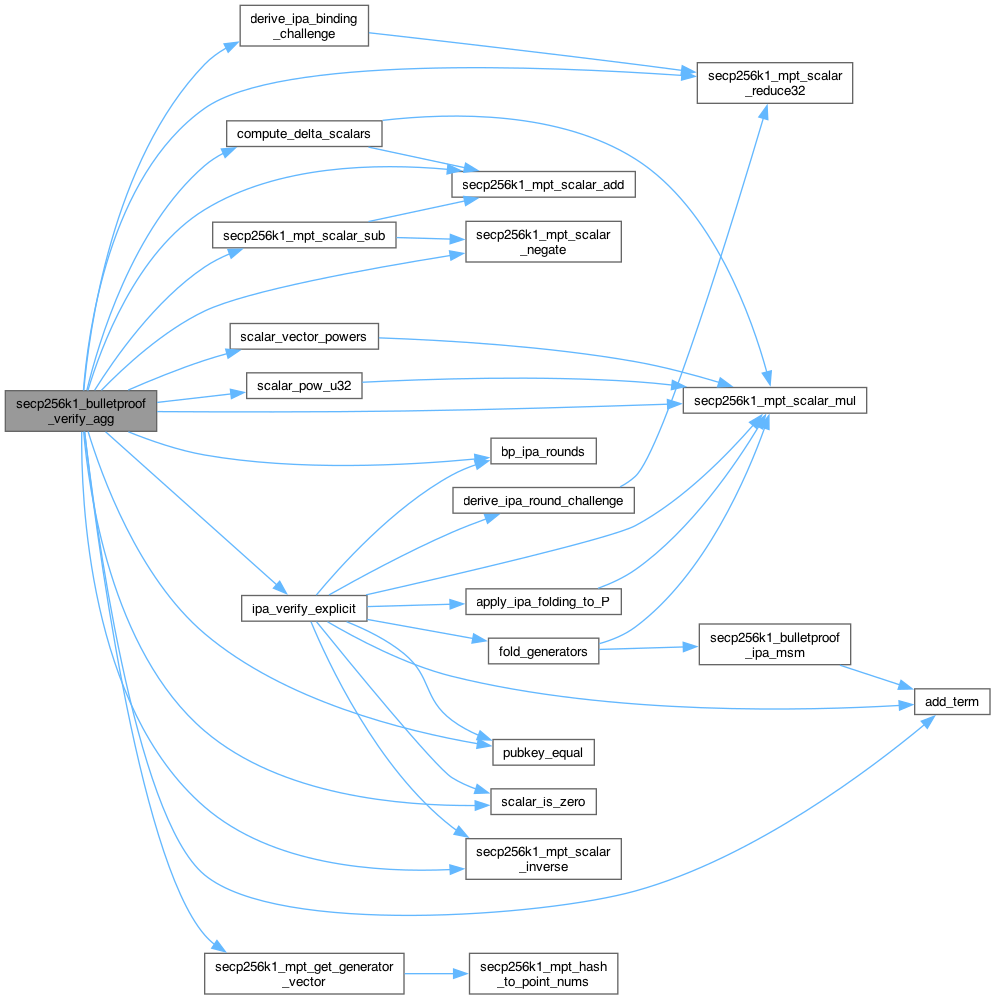

Here is the call graph for this function:

secp256k1_elgamal_add()

SECP256K1_API int secp256k1_elgamal_add	(	const secp256k1_context *	ctx,
		secp256k1_pubkey *	sum_c1,
		secp256k1_pubkey *	sum_c2,
		const secp256k1_pubkey *	a_c1,
		const secp256k1_pubkey *	a_c2,
		const secp256k1_pubkey *	b_c1,
		const secp256k1_pubkey *	b_c2 )

Homomorphically adds two ElGamal ciphertexts.

Definition at line 164 of file elgamal.c.

secp256k1_elgamal_decrypt()

SECP256K1_API int secp256k1_elgamal_decrypt	(	const secp256k1_context *	ctx,
		uint64_t *	amount,
		const secp256k1_pubkey *	c1,
		const secp256k1_pubkey *	c2,
		const unsigned char *	privkey )

Decrypts an ElGamal ciphertext to recover the amount.

Definition at line 111 of file elgamal.c.

Here is the call graph for this function:

secp256k1_elgamal_encrypt()

SECP256K1_API int secp256k1_elgamal_encrypt	(	const secp256k1_context *	ctx,
		secp256k1_pubkey *	c1,
		secp256k1_pubkey *	c2,
		const secp256k1_pubkey *	pubkey_Q,
		uint64_t	amount,
		const unsigned char *	blinding_factor )

Encrypts a 64-bit amount using ElGamal.

Definition at line 79 of file elgamal.c.

Here is the call graph for this function:

Here is the caller graph for this function:

secp256k1_elgamal_generate_keypair()

SECP256K1_API int secp256k1_elgamal_generate_keypair	(	const secp256k1_context *	ctx,
		unsigned char *	privkey,
		secp256k1_pubkey *	pubkey )

Generates a new secp256k1 key pair.

Definition at line 61 of file elgamal.c.

secp256k1_elgamal_pedersen_link_prove()

int secp256k1_elgamal_pedersen_link_prove	(	const secp256k1_context *	ctx,
		unsigned char *	proof,
		const secp256k1_pubkey *	c1,
		const secp256k1_pubkey *	c2,
		const secp256k1_pubkey *	pk,
		const secp256k1_pubkey *	pcm,
		uint64_t	amount,
		const unsigned char *	r,
		const unsigned char *	rho,
		const unsigned char *	context_id )

Proves the link between an ElGamal ciphertext and a Pedersen commitment.

• Formal Statement: Knowledge of (m, r, rho) such that: C1 = r*G, C2 = m*G + r*Pk, and PCm = m*G + rho*H.

• Parameters

  ctx	Pointer to a secp256k1 context object.
  proof	[OUT] Pointer to 195-byte buffer for the proof output.
  c1	Pointer to the ElGamal C1 point (r*G).
  c2	Pointer to the ElGamal C2 point (m*G + r*Pk).
  pk	Pointer to the recipient's public key.
  pcm	Pointer to the Pedersen Commitment (m*G + rho*H).
  amount	The plaintext amount (m).
  r	The 32-byte secret ElGamal blinding factor.
  rho	The 32-byte secret Pedersen blinding factor.
  context_id	32-byte unique transaction context identifier.

  Returns

  1 on success, 0 on failure.

Definition at line 108 of file proof_link.c.

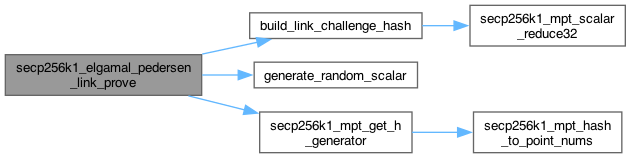

Here is the call graph for this function:

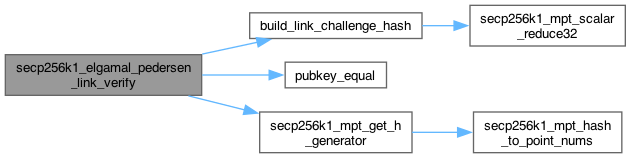

secp256k1_elgamal_pedersen_link_verify()

int secp256k1_elgamal_pedersen_link_verify	(	const secp256k1_context *	ctx,
		const unsigned char *	proof,
		const secp256k1_pubkey *	c1,
		const secp256k1_pubkey *	c2,
		const secp256k1_pubkey *	pk,
		const secp256k1_pubkey *	pcm,
		const unsigned char *	context_id )

Verifies the link proof between ElGamal and Pedersen commitments.

• Returns

  1 if the proof is valid, 0 otherwise.

Definition at line 212 of file proof_link.c.

Here is the call graph for this function:

secp256k1_elgamal_subtract()

SECP256K1_API int secp256k1_elgamal_subtract	(	const secp256k1_context *	ctx,
		secp256k1_pubkey *	diff_c1,
		secp256k1_pubkey *	diff_c2,
		const secp256k1_pubkey *	a_c1,
		const secp256k1_pubkey *	a_c2,
		const secp256k1_pubkey *	b_c1,
		const secp256k1_pubkey *	b_c2 )

Homomorphically subtracts two ElGamal ciphertexts.

Definition at line 184 of file elgamal.c.

secp256k1_elgamal_verify_encryption()

int secp256k1_elgamal_verify_encryption	(	const secp256k1_context *	ctx,
		const secp256k1_pubkey *	c1,
		const secp256k1_pubkey *	c2,
		const secp256k1_pubkey *	pubkey_Q,
		uint64_t	amount,
		const unsigned char *	blinding_factor )

Verifies that (c1, c2) is a valid ElGamal encryption of 'amount' for 'pubkey_Q' using the revealed 'blinding_factor'.

Definition at line 262 of file elgamal.c.

Here is the call graph for this function:

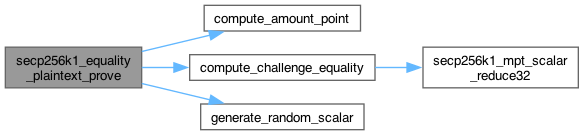

secp256k1_equality_plaintext_prove()

SECP256K1_API int secp256k1_equality_plaintext_prove	(	const secp256k1_context *	ctx,
		unsigned char *	proof,
		const secp256k1_pubkey *	c1,
		const secp256k1_pubkey *	c2,
		const secp256k1_pubkey *	pk_recipient,
		uint64_t	amount,
		const unsigned char *	randomness_r,
		const unsigned char *	tx_context_id )

Generates a proof that an ElGamal ciphertext correctly encrypts a known plaintext m and that the prover knows the randomness r.

Parameters

[in]	ctx	A pointer to a valid secp256k1 context object, initialized for signing.
[out]	proof	A pointer to a 98-byte buffer to store the proof (T1 [33 bytes] || T2 [33 bytes] || s [32 bytes]).
[in]	c1	The C1 component of the ciphertext (r*G).
[in]	c2	The C2 component of the ciphertext (m*G + r*Pk).
[in]	pk_recipient	The public key used for encryption.
[in]	amount	The known plaintext value m.
[in]	randomness_r	The 32-byte secret random scalar r used in encryption.
[in]	tx_context_id	A 32-byte unique identifier for the transaction context.

Returns

1 on success, 0 on failure.

Definition at line 115 of file equality_proof.c.

Here is the call graph for this function:

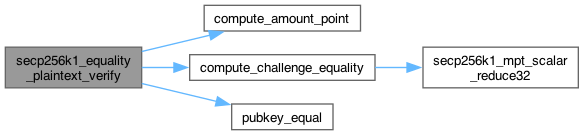

secp256k1_equality_plaintext_verify()

SECP256K1_API int secp256k1_equality_plaintext_verify	(	const secp256k1_context *	ctx,
		const unsigned char *	proof,
		const secp256k1_pubkey *	c1,
		const secp256k1_pubkey *	c2,
		const secp256k1_pubkey *	pk_recipient,
		uint64_t	amount,
		const unsigned char *	tx_context_id )

Verifies a proof of knowledge of plaintext and randomness.

Checks if the proof correctly demonstrates that (C1, C2) encrypts m under pk_recipient.

Parameters

[in]	ctx	A pointer to a valid secp256k1 context object, initialized for verification.
[in]	proof	A pointer to the 98-byte proof to verify.
[in]	c1	The C1 component of the ciphertext.
[in]	c2	The C2 component of the ciphertext.
[in]	pk_recipient	The public key used for encryption.
[in]	amount	The known plaintext value m.
[in]	tx_context_id	A 32-byte unique identifier for the transaction context.

Returns

1 if the proof is valid, 0 otherwise.

Definition at line 181 of file equality_proof.c.

Here is the call graph for this function:

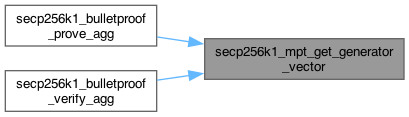

secp256k1_mpt_get_generator_vector()

int secp256k1_mpt_get_generator_vector	(	const secp256k1_context *	ctx,
		secp256k1_pubkey *	vec,
		size_t	n,
		const unsigned char *	label,
		size_t	label_len )

Generates a vector of N independent NUMS generators.

• Used to populate the G_i and H_i vectors for Bulletproofs. Each point is derived deterministically from the provided label and its index.

Parameters

ctx	secp256k1 context.
vec	Array to store the resulting generators.
n	Number of generators to derive.
label	The label string ("G" or "H").
label_len	Length of the label string.

Returns

1 on success, 0 on failure.

Definition at line 124 of file commitments.c.

Here is the call graph for this function:

Here is the caller graph for this function:

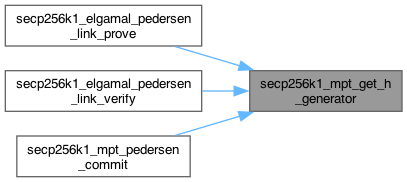

secp256k1_mpt_get_h_generator()

int secp256k1_mpt_get_h_generator	(	const secp256k1_context *	ctx,
		secp256k1_pubkey *	h )

Derives the secondary base point (H) for Pedersen commitments.

Get the standardized H generator for Pedersen Commitments

• This derives a NUMS point using the label "H" at index 0. This H is used alongside the standard generator G to form the commitment C = v*G + r*H. Using a NUMS point ensures that the discrete logarithm of H with respect to G is unknown.

Parameters

ctx	secp256k1 context.
h	The resulting H generator public key.

Returns

1 on success, 0 on failure.

Definition at line 108 of file commitments.c.

Here is the call graph for this function:

Here is the caller graph for this function:

secp256k1_mpt_pedersen_commit()

int secp256k1_mpt_pedersen_commit	(	const secp256k1_context *	ctx,
		secp256k1_pubkey *	commitment,
		uint64_t	amount,
		const unsigned char *	rho )

Creates a Pedersen Commitment C = amount*G + rho*H.

Compute a Pedersen Commitment: PC = m*G + rho*H Returns 1 on success, 0 on failure.

• Parameters

  ctx	secp256k1 context.
  commitment	Output commitment public key.
  amount	The value to commit to.
  rho	The blinding factor (randomness).

  Returns

  1 on success, 0 on failure.

Definition at line 149 of file commitments.c.

Here is the call graph for this function:

secp256k1_mpt_pok_sk_prove()

int secp256k1_mpt_pok_sk_prove	(	const secp256k1_context *	ctx,
		unsigned char *	proof,
		const secp256k1_pubkey *	pk,
		const unsigned char *	sk,
		const unsigned char *	context_id )

Proof of Knowledge of Secret Key for Registration

Definition at line 92 of file proof_pok_sk.c.

Here is the call graph for this function:

secp256k1_mpt_pok_sk_verify()

int secp256k1_mpt_pok_sk_verify	(	const secp256k1_context *	ctx,
		const unsigned char *	proof,
		const secp256k1_pubkey *	pk,
		const unsigned char *	context_id )

Definition at line 135 of file proof_pok_sk.c.

Here is the call graph for this function:

secp256k1_mpt_proof_equality_shared_r_size()

size_t secp256k1_mpt_proof_equality_shared_r_size

(

size_t

n

)

Returns the size of the serialized proof for N recipients. Size: (1 + N) * 33 bytes for points + 2 * 32 bytes for scalars.

Definition at line 61 of file proof_same_plaintext_multi_shared_r.c.

Here is the caller graph for this function:

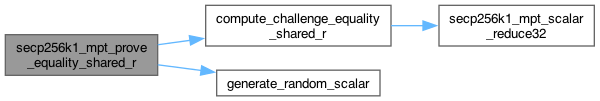

secp256k1_mpt_prove_equality_shared_r()

int secp256k1_mpt_prove_equality_shared_r	(	const secp256k1_context *	ctx,
		unsigned char *	proof_out,
		uint64_t	amount,
		const unsigned char *	r_shared,
		size_t	n,
		const secp256k1_pubkey *	C1,
		const secp256k1_pubkey *	C2_vec,
		const secp256k1_pubkey *	Pk_vec,
		const unsigned char *	context_id )

Generates a proof that multiple ciphertexts encrypt the same amount m using the SAME shared randomness r.

Definition at line 123 of file proof_same_plaintext_multi_shared_r.c.

Here is the call graph for this function:

secp256k1_mpt_prove_same_plaintext()

SECP256K1_API int secp256k1_mpt_prove_same_plaintext	(	const secp256k1_context *	ctx,
		unsigned char *	proof_out,
		const secp256k1_pubkey *	R1,
		const secp256k1_pubkey *	S1,
		const secp256k1_pubkey *	P1,
		const secp256k1_pubkey *	R2,
		const secp256k1_pubkey *	S2,
		const secp256k1_pubkey *	P2,
		uint64_t	amount_m,
		const unsigned char *	randomness_r1,
		const unsigned char *	randomness_r2,
		const unsigned char *	tx_context_id )

Generates a proof that two ciphertexts (under different keys) encrypt the same secret amount 'm'.

Parameters

[in]	ctx	A pointer to a valid secp256k1 context.
[out]	proof_out	A pointer to a 261-byte buffer to store the proof.
[in]	R1,S1,P1	The first ciphertext (R1, S1) and its public key (P1).
[in]	R2,S2,P2	The second ciphertext (R2, S2) and its public key (P2).
[in]	amount_m	The secret common uint64_t plaintext value 'm'.
[in]	randomness_r1	The 32-byte secret random scalar 'r1' for C1.
[in]	randomness_r2	The 32-byte secret random scalar 'r2' for C2.
[in]	tx_context_id	A 32-byte unique identifier for the transaction.

Returns

1 on success, 0 on failure.

Definition at line 117 of file proof_same_plaintext.c.

Here is the call graph for this function:

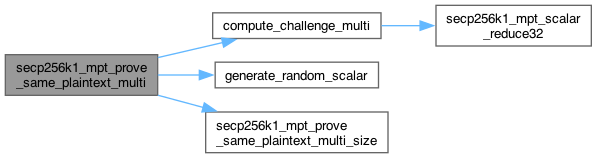

secp256k1_mpt_prove_same_plaintext_multi()

SECP256K1_API int secp256k1_mpt_prove_same_plaintext_multi	(	const secp256k1_context *	ctx,
		unsigned char *	proof_out,
		size_t *	proof_len,
		uint64_t	amount_m,
		size_t	n_ciphertexts,
		const secp256k1_pubkey *	R_array,
		const secp256k1_pubkey *	S_array,
		const secp256k1_pubkey *	Pk_array,
		const unsigned char *	r_array,
		const unsigned char *	tx_context_id )

Generates a proof that N ciphertexts encrypt the same secret amount 'm'.

Parameters

[in]	ctx	A pointer to a valid secp256k1 context.
[out]	proof_out	A pointer to a buffer to store the proof.
[in,out]	proof_len	Input: buffer size. Output: actual proof size.
[in]	amount_m	The secret common uint64_t plaintext value 'm'.
[in]	n_ciphertexts	The number (N) of ciphertexts.
[in]	R_array	Array of N 'R' points (C1 components).
[in]	S_array	Array of N 'S' points (C2 components).
[in]	Pk_array	Array of N recipient public keys.
[in]	r_array	Array of N 32-byte secret scalars (randomness).
[in]	tx_context_id	32-byte unique transaction identifier.

Returns

1 on success, 0 on failure.

Definition at line 135 of file proof_same_plaintext_multi.c.

Here is the call graph for this function:

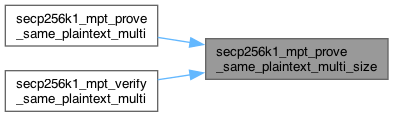

secp256k1_mpt_prove_same_plaintext_multi_size()

SECP256K1_API size_t secp256k1_mpt_prove_same_plaintext_multi_size

(

size_t

n_ciphertexts

)

Calculates the expected proof size for a given number of ciphertexts.

Definition at line 130 of file proof_same_plaintext_multi.c.

Here is the caller graph for this function:

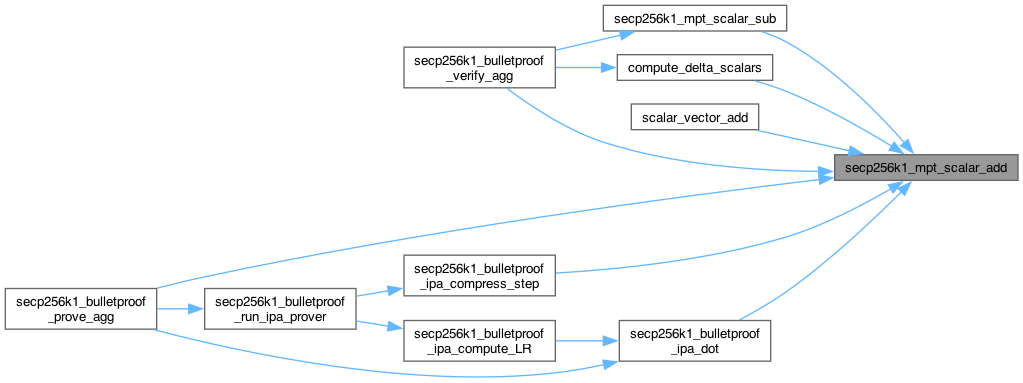

secp256k1_mpt_scalar_add()

void secp256k1_mpt_scalar_add	(	unsigned char *	res,
		const unsigned char *	a,
		const unsigned char *	b )

Definition at line 60 of file mpt_scalar.c.

Here is the caller graph for this function:

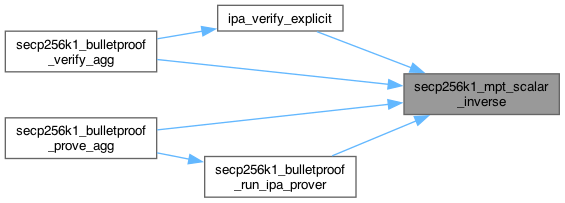

secp256k1_mpt_scalar_inverse()

void secp256k1_mpt_scalar_inverse	(	unsigned char *	res,
		const unsigned char *	in )

Definition at line 86 of file mpt_scalar.c.

Here is the caller graph for this function:

secp256k1_mpt_scalar_mul()

void secp256k1_mpt_scalar_mul	(	unsigned char *	res,
		const unsigned char *	a,
		const unsigned char *	b )

Definition at line 73 of file mpt_scalar.c.

Here is the caller graph for this function:

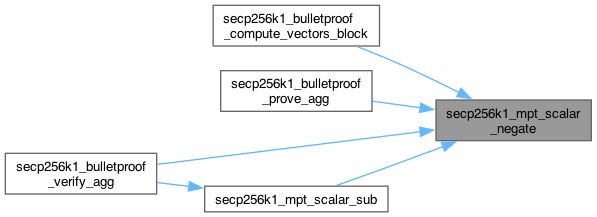

secp256k1_mpt_scalar_negate()

void secp256k1_mpt_scalar_negate	(	unsigned char *	res,
		const unsigned char *	in )

Definition at line 96 of file mpt_scalar.c.

Here is the caller graph for this function:

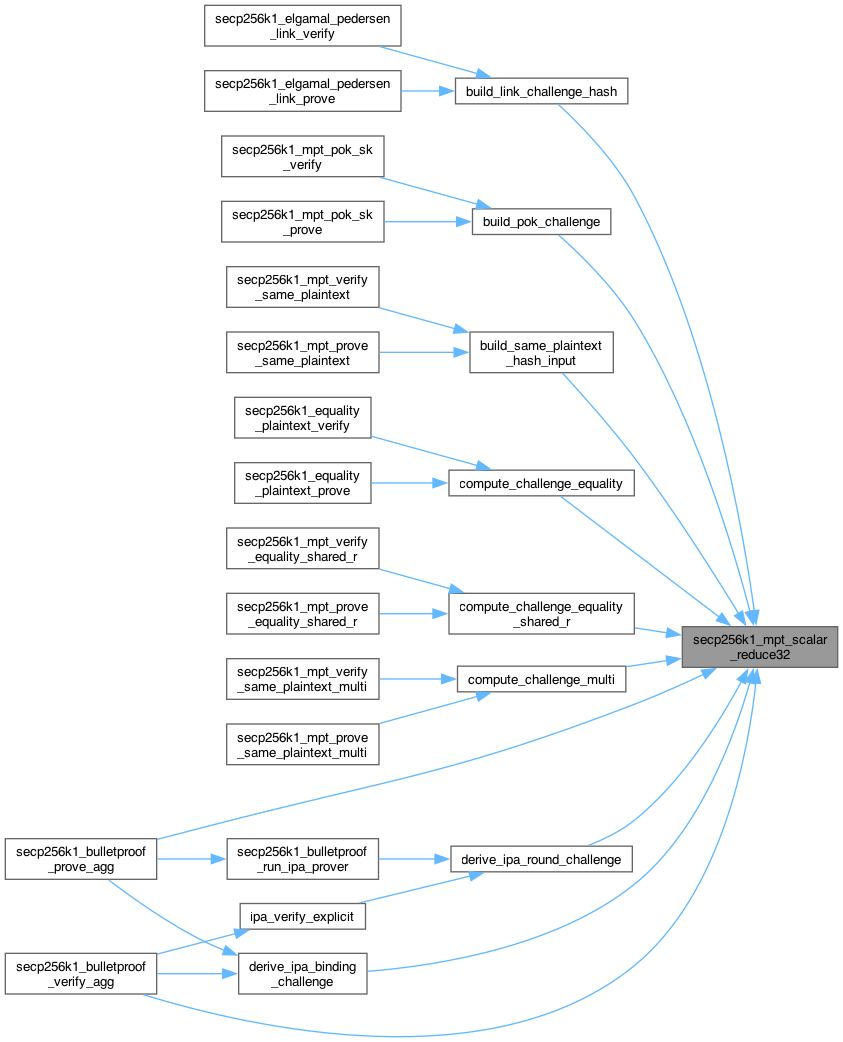

secp256k1_mpt_scalar_reduce32()

void secp256k1_mpt_scalar_reduce32	(	unsigned char	out32[32],
		const unsigned char	in32[32] )

Definition at line 106 of file mpt_scalar.c.

Here is the caller graph for this function:

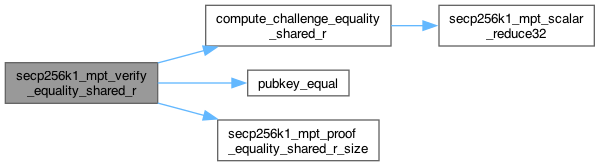

secp256k1_mpt_verify_equality_shared_r()

int secp256k1_mpt_verify_equality_shared_r	(	const secp256k1_context *	ctx,
		const unsigned char *	proof,
		size_t	n,
		const secp256k1_pubkey *	C1,
		const secp256k1_pubkey *	C2_vec,
		const secp256k1_pubkey *	Pk_vec,
		const unsigned char *	context_id )

Verifies the proof of equality with shared randomness.

Definition at line 234 of file proof_same_plaintext_multi_shared_r.c.

Here is the call graph for this function:

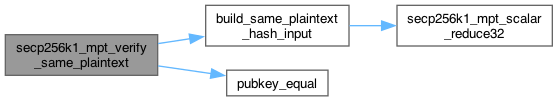

secp256k1_mpt_verify_same_plaintext()

SECP256K1_API int secp256k1_mpt_verify_same_plaintext	(	const secp256k1_context *	ctx,
		const unsigned char *	proof,
		const secp256k1_pubkey *	R1,
		const secp256k1_pubkey *	S1,
		const secp256k1_pubkey *	P1,
		const secp256k1_pubkey *	R2,
		const secp256k1_pubkey *	S2,
		const secp256k1_pubkey *	P2,
		const unsigned char *	tx_context_id )

Verifies a proof that two ciphertexts encrypt the same secret amount.

Parameters

[in]	ctx	A pointer to a valid secp256k1 context.
[in]	proof	A pointer to the 261-byte proof to verify.
[in]	R1,S1,P1	The first ciphertext (R1, S1) and its public key (P1).
[in]	R2,S2,P2	The second ciphertext (R2, S2) and its public key (P2).
[in]	tx_context_id	A 32-byte unique identifier for the transaction.

Returns

1 if the proof is valid, 0 otherwise.

Definition at line 201 of file proof_same_plaintext.c.

Here is the call graph for this function:

secp256k1_mpt_verify_same_plaintext_multi()

SECP256K1_API int secp256k1_mpt_verify_same_plaintext_multi	(	const secp256k1_context *	ctx,
		const unsigned char *	proof,
		size_t	proof_len,
		size_t	n_ciphertexts,
		const secp256k1_pubkey *	R_array,
		const secp256k1_pubkey *	S_array,
		const secp256k1_pubkey *	Pk_array,
		const unsigned char *	tx_context_id )

Verifies a proof that N ciphertexts encrypt the same secret amount.

Definition at line 250 of file proof_same_plaintext_multi.c.

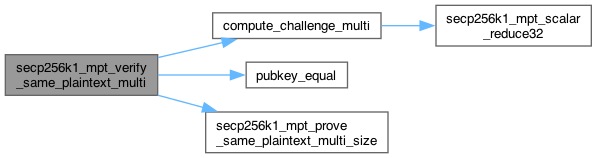

Here is the call graph for this function:
