proof_same_plaintext_multi.c File Reference

Zero-Knowledge Proof of Plaintext Equality (1-to-N). More...

#include "secp256k1_mpt.h"
#include <openssl/sha.h>
#include <openssl/rand.h>
#include <string.h>
#include <stdlib.h>

Include dependency graph for proof_same_plaintext_multi.c:

Go to the source code of this file.

Functions
static int	pubkey_equal (const secp256k1_context *ctx, const secp256k1_pubkey *pk1, const secp256k1_pubkey *pk2)
static int	generate_random_scalar (const secp256k1_context *ctx, unsigned char *scalar)
static void	compute_challenge_multi (const secp256k1_context *ctx, unsigned char *e_out, size_t n, const secp256k1_pubkey *R, const secp256k1_pubkey *S, const secp256k1_pubkey *Pk, const secp256k1_pubkey *Tm, const secp256k1_pubkey *TrG, const secp256k1_pubkey *TrP, const unsigned char *tx_id)
size_t	secp256k1_mpt_prove_same_plaintext_multi_size (size_t n)
	Calculates the expected proof size for a given number of ciphertexts.
int	secp256k1_mpt_prove_same_plaintext_multi (const secp256k1_context *ctx, unsigned char *proof_out, size_t *proof_len, uint64_t amount_m, size_t n, const secp256k1_pubkey *R, const secp256k1_pubkey *S, const secp256k1_pubkey *Pk, const unsigned char *r_array, const unsigned char *tx_id)
	Generates a proof that N ciphertexts encrypt the same secret amount 'm'.
int	secp256k1_mpt_verify_same_plaintext_multi (const secp256k1_context *ctx, const unsigned char *proof, size_t proof_len, size_t n, const secp256k1_pubkey *R, const secp256k1_pubkey *S, const secp256k1_pubkey *Pk, const unsigned char *tx_id)
	Verifies a proof that N ciphertexts encrypt the same secret amount.

Detailed Description

Zero-Knowledge Proof of Plaintext Equality (1-to-N).

This module implements a generalized multi-statement Sigma protocol to prove that \( N \) distinct ElGamal ciphertexts all encrypt the same underlying plaintext amount \( m \), using distinct randomness \( r_i \) for each.

Statement: Given \( N \) ciphertexts \( (R_i, S_i) \) encrypted under public keys \( P_i \), the prover demonstrates knowledge of scalars \( m \) and \( \{r_1, \dots, r_N\} \) such that for all \( i \in [1, N] \):

1. \( R_i = r_i \cdot G \)
2. \( S_i = m \cdot G + r_i \cdot P_i \)

Protocol (Shared Amount Nonce): The efficiency gain comes from reusing the random nonce for the amount ( \( k_m \)) across all \( N \) proofs, tying them mathematically to the same value \( m \).

1. Commitments:

• \( T_m = k_m \cdot G \) (Shared commitment to amount nonce)
• For each \( i \):
• \( T_{r,G}^{(i)} = k_{r,i} \cdot G \)
• \( T_{r,P}^{(i)} = k_{r,i} \cdot P_i \)

1. Challenge:

   \[ e = H(\dots \parallel T_m \parallel \{T_{r,G}^{(i)}, T_{r,P}^{(i)}\}_{i=1}^N \parallel \dots) \]

2. Responses:

• \( s_m = k_m + e \cdot m \) (Shared response for amount)
• For each \( i \): \( s_{r,i} = k_{r,i} + e \cdot r_i \)

1. Verification: For each \( i \in [1, N] \), the verifier checks:

• \( s_{r,i} \cdot G \stackrel{?}{=} T_{r,G}^{(i)} + e \cdot R_i \)
• \( s_m \cdot G + s_{r,i} \cdot P_i \stackrel{?}{=} T_m + T_{r,P}^{(i)} + e \cdot S_i \)

Security Context: This is crucial for "fan-out" transactions or auditing scenarios where a single value must be proven correct against multiple encrypted destinations simultaneously, ensuring consistency without revealing the value.

See also

[Spec (ConfidentialMPT_20260106.pdf) Section 3.3.4] Generalization for Multiple Ciphertexts

Definition in file proof_same_plaintext_multi.c.

Function Documentation

compute_challenge_multi()

void compute_challenge_multi ( const secp256k1_context * ctx, unsigned char * e_out, size_t n, const secp256k1_pubkey * R, const secp256k1_pubkey * S, const secp256k1_pubkey * Pk, const secp256k1_pubkey * Tm, const secp256k1_pubkey * TrG, const secp256k1_pubkey * TrP, const unsigned char * tx_id )

static

Definition at line 67 of file proof_same_plaintext_multi.c.

Here is the call graph for this function:

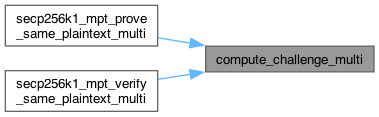

Here is the caller graph for this function:

generate_random_scalar()

int generate_random_scalar ( const secp256k1_context * ctx, unsigned char * scalar )

static

Definition at line 57 of file proof_same_plaintext_multi.c.

Here is the caller graph for this function:

pubkey_equal()

int pubkey_equal ( const secp256k1_context * ctx, const secp256k1_pubkey * pk1, const secp256k1_pubkey * pk2 )

static

Definition at line 53 of file proof_same_plaintext_multi.c.

Here is the caller graph for this function:

secp256k1_mpt_prove_same_plaintext_multi()

int secp256k1_mpt_prove_same_plaintext_multi	(	const secp256k1_context *	ctx,
		unsigned char *	proof_out,
		size_t *	proof_len,
		uint64_t	amount_m,
		size_t	n_ciphertexts,
		const secp256k1_pubkey *	R_array,
		const secp256k1_pubkey *	S_array,
		const secp256k1_pubkey *	Pk_array,
		const unsigned char *	r_array,
		const unsigned char *	tx_context_id )

Generates a proof that N ciphertexts encrypt the same secret amount 'm'.

Parameters

[in]	ctx	A pointer to a valid secp256k1 context.
[out]	proof_out	A pointer to a buffer to store the proof.
[in,out]	proof_len	Input: buffer size. Output: actual proof size.
[in]	amount_m	The secret common uint64_t plaintext value 'm'.
[in]	n_ciphertexts	The number (N) of ciphertexts.
[in]	R_array	Array of N 'R' points (C1 components).
[in]	S_array	Array of N 'S' points (C2 components).
[in]	Pk_array	Array of N recipient public keys.
[in]	r_array	Array of N 32-byte secret scalars (randomness).
[in]	tx_context_id	32-byte unique transaction identifier.

Returns

1 on success, 0 on failure.

Definition at line 135 of file proof_same_plaintext_multi.c.

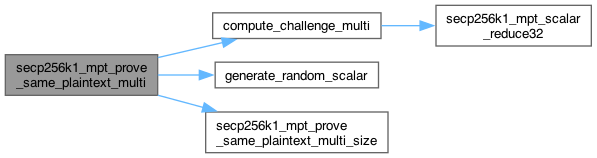

Here is the call graph for this function:

secp256k1_mpt_prove_same_plaintext_multi_size()

size_t secp256k1_mpt_prove_same_plaintext_multi_size

(

size_t

n

)

Calculates the expected proof size for a given number of ciphertexts.

Definition at line 130 of file proof_same_plaintext_multi.c.

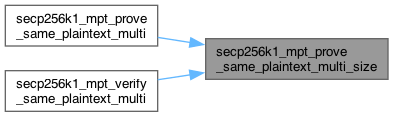

Here is the caller graph for this function:

secp256k1_mpt_verify_same_plaintext_multi()

int secp256k1_mpt_verify_same_plaintext_multi	(	const secp256k1_context *	ctx,
		const unsigned char *	proof,
		size_t	proof_len,
		size_t	n,
		const secp256k1_pubkey *	R,
		const secp256k1_pubkey *	S,
		const secp256k1_pubkey *	Pk,
		const unsigned char *	tx_id )

Verifies a proof that N ciphertexts encrypt the same secret amount.

Definition at line 250 of file proof_same_plaintext_multi.c.

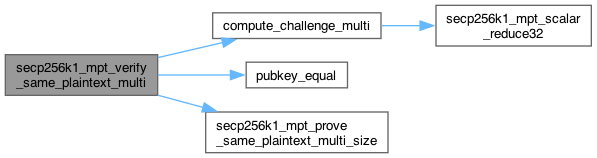

Here is the call graph for this function:
