proof_same_plaintext.c File Reference

Zero-Knowledge Proof of Plaintext Equality (1-to-1). More...

#include "secp256k1_mpt.h"
#include <openssl/sha.h>
#include <openssl/rand.h>
#include <string.h>
#include <stdlib.h>

Include dependency graph for proof_same_plaintext.c:

Go to the source code of this file.

Macros
#define	SER_AND_HASH(pk)

Functions
static int	pubkey_equal (const secp256k1_context *ctx, const secp256k1_pubkey *pk1, const secp256k1_pubkey *pk2)
static int	generate_random_scalar (const secp256k1_context *ctx, unsigned char *scalar)
static void	build_same_plaintext_hash_input (const secp256k1_context *ctx, unsigned char *e_out, const secp256k1_pubkey *R1, const secp256k1_pubkey *S1, const secp256k1_pubkey *P1, const secp256k1_pubkey *R2, const secp256k1_pubkey *S2, const secp256k1_pubkey *P2, const secp256k1_pubkey *T_m, const secp256k1_pubkey *T_r1_G, const secp256k1_pubkey *T_r1_P1, const secp256k1_pubkey *T_r2_G, const secp256k1_pubkey *T_r2_P2, const unsigned char *tx_context_id)
int	secp256k1_mpt_prove_same_plaintext (const secp256k1_context *ctx, unsigned char *proof_out, const secp256k1_pubkey *R1, const secp256k1_pubkey *S1, const secp256k1_pubkey *P1, const secp256k1_pubkey *R2, const secp256k1_pubkey *S2, const secp256k1_pubkey *P2, uint64_t amount_m, const unsigned char *randomness_r1, const unsigned char *randomness_r2, const unsigned char *tx_context_id)
	Generates a proof that two ciphertexts (under different keys) encrypt the same secret amount 'm'.
int	secp256k1_mpt_verify_same_plaintext (const secp256k1_context *ctx, const unsigned char *proof, const secp256k1_pubkey *R1, const secp256k1_pubkey *S1, const secp256k1_pubkey *P1, const secp256k1_pubkey *R2, const secp256k1_pubkey *S2, const secp256k1_pubkey *P2, const unsigned char *tx_context_id)
	Verifies a proof that two ciphertexts encrypt the same secret amount.

Detailed Description

Zero-Knowledge Proof of Plaintext Equality (1-to-1).

This module implements a multi-statement Sigma protocol to prove that two different ElGamal ciphertexts encrypt the same underlying plaintext amount, potentially under different public keys and using different randomness.

Statement: Given two ciphertexts \( (R_1, S_1) \) and \( (R_2, S_2) \) encrypted under public keys \( P_1 \) and \( P_2 \) respectively, the prover demonstrates knowledge of scalars \( m, r_1, r_2 \) such that:

1. \( R_1 = r_1 \cdot G \) and \( S_1 = m \cdot G + r_1 \cdot P_1 \)
2. \( R_2 = r_2 \cdot G \) and \( S_2 = m \cdot G + r_2 \cdot P_2 \)

Protocol Logic (Shared Nonce): To prove that \( m \) is identical in both ciphertexts without revealing it, the prover uses a shared random nonce \( k_m \) for the amount commitment across both logical branches of the proof.

1. Commitments:

• \( T_m = k_m \cdot G \) (Shared commitment to amount nonce)
• \( T_{r1,G} = k_{r1} \cdot G \), \( T_{r1,P1} = k_{r1} \cdot P_1 \)
• \( T_{r2,G} = k_{r2} \cdot G \), \( T_{r2,P2} = k_{r2} \cdot P_2 \)

1. Challenge: \( e = H(\dots \parallel T_m \parallel \dots) \)
2. Responses:

• \( s_m = k_m + e \cdot m \) (Shared response for amount)
• \( s_{r1} = k_{r1} + e \cdot r_1 \)
• \( s_{r2} = k_{r2} + e \cdot r_2 \)

1. Verification: The verifier checks 4 equations. Crucially, the "Amount" equations for both ciphertexts use the same \( s_m \) and \( T_m \), mathematically enforcing equality:

• \( s_m \cdot G + s_{r1} \cdot P_1 \stackrel{?}{=} T_m + T_{r1,P1} + e \cdot S_1 \)
• \( s_m \cdot G + s_{r2} \cdot P_2 \stackrel{?}{=} T_m + T_{r2,P2} + e \cdot S_2 \)

Security Context: This is used when transferring confidential tokens between accounts (re-encrypting the sender's balance for the receiver) or updating keys, ensuring no value is created or destroyed during the transformation.

See also

[Spec (ConfidentialMPT_20260106.pdf) Section 3.3.3] Proof of Equality of Plaintexts (Different Keys, Same Secret Amount)

Definition in file proof_same_plaintext.c.

Macro Definition Documentation

SER_AND_HASH

#define SER_AND_HASH

(

pk

)

Value:

    do { \
    len = 33; \
    secp256k1_ec_pubkey_serialize(ctx, buf, &len, pk, SECP256K1_EC_COMPRESSED); \
    SHA256_Update(&sha, buf, 33); \
} while(0)

Function Documentation

build_same_plaintext_hash_input()

void build_same_plaintext_hash_input ( const secp256k1_context * ctx, unsigned char * e_out, const secp256k1_pubkey * R1, const secp256k1_pubkey * S1, const secp256k1_pubkey * P1, const secp256k1_pubkey * R2, const secp256k1_pubkey * S2, const secp256k1_pubkey * P2, const secp256k1_pubkey * T_m, const secp256k1_pubkey * T_r1_G, const secp256k1_pubkey * T_r1_P1, const secp256k1_pubkey * T_r2_G, const secp256k1_pubkey * T_r2_P2, const unsigned char * tx_context_id )

static

Builds the challenge hash input.

Definition at line 70 of file proof_same_plaintext.c.

Here is the call graph for this function:

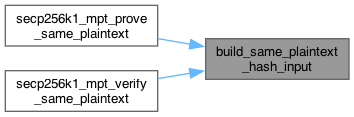

Here is the caller graph for this function:

generate_random_scalar()

int generate_random_scalar ( const secp256k1_context * ctx, unsigned char * scalar )

static

Definition at line 60 of file proof_same_plaintext.c.

Here is the caller graph for this function:

pubkey_equal()

int pubkey_equal ( const secp256k1_context * ctx, const secp256k1_pubkey * pk1, const secp256k1_pubkey * pk2 )

static

Definition at line 56 of file proof_same_plaintext.c.

Here is the caller graph for this function:

secp256k1_mpt_prove_same_plaintext()

int secp256k1_mpt_prove_same_plaintext	(	const secp256k1_context *	ctx,
		unsigned char *	proof_out,
		const secp256k1_pubkey *	R1,
		const secp256k1_pubkey *	S1,
		const secp256k1_pubkey *	P1,
		const secp256k1_pubkey *	R2,
		const secp256k1_pubkey *	S2,
		const secp256k1_pubkey *	P2,
		uint64_t	amount_m,
		const unsigned char *	randomness_r1,
		const unsigned char *	randomness_r2,
		const unsigned char *	tx_context_id )

Generates a proof that two ciphertexts (under different keys) encrypt the same secret amount 'm'.

Parameters

[in]	ctx	A pointer to a valid secp256k1 context.
[out]	proof_out	A pointer to a 261-byte buffer to store the proof.
[in]	R1,S1,P1	The first ciphertext (R1, S1) and its public key (P1).
[in]	R2,S2,P2	The second ciphertext (R2, S2) and its public key (P2).
[in]	amount_m	The secret common uint64_t plaintext value 'm'.
[in]	randomness_r1	The 32-byte secret random scalar 'r1' for C1.
[in]	randomness_r2	The 32-byte secret random scalar 'r2' for C2.
[in]	tx_context_id	A 32-byte unique identifier for the transaction.

Returns

1 on success, 0 on failure.

Definition at line 117 of file proof_same_plaintext.c.

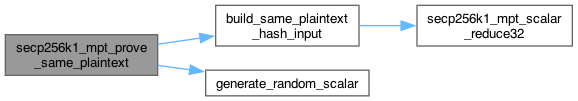

Here is the call graph for this function:

secp256k1_mpt_verify_same_plaintext()

int secp256k1_mpt_verify_same_plaintext	(	const secp256k1_context *	ctx,
		const unsigned char *	proof,
		const secp256k1_pubkey *	R1,
		const secp256k1_pubkey *	S1,
		const secp256k1_pubkey *	P1,
		const secp256k1_pubkey *	R2,
		const secp256k1_pubkey *	S2,
		const secp256k1_pubkey *	P2,
		const unsigned char *	tx_context_id )

Verifies a proof that two ciphertexts encrypt the same secret amount.

Parameters

[in]	ctx	A pointer to a valid secp256k1 context.
[in]	proof	A pointer to the 261-byte proof to verify.
[in]	R1,S1,P1	The first ciphertext (R1, S1) and its public key (P1).
[in]	R2,S2,P2	The second ciphertext (R2, S2) and its public key (P2).
[in]	tx_context_id	A 32-byte unique identifier for the transaction.

Returns

1 if the proof is valid, 0 otherwise.

Definition at line 201 of file proof_same_plaintext.c.

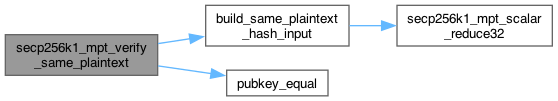

Here is the call graph for this function:
