mpt_scalar.c File Reference

Scalar Field Arithmetic Abstraction Layer. More...

#include "secp256k1_mpt.h"
#include <string.h>
#include <openssl/crypto.h>
#include "util.h"
#include "int128.h"
#include "int128_impl.h"
#include "scalar.h"
#include "scalar_impl.h"

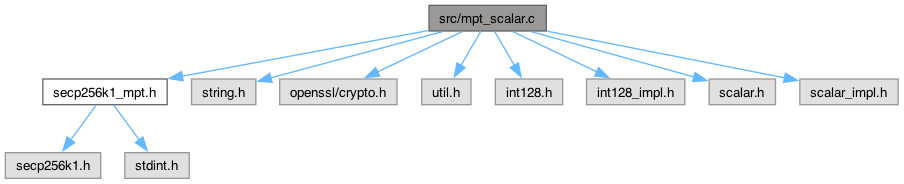

Include dependency graph for mpt_scalar.c:

Go to the source code of this file.

Macros
#define	USE_SCALAR_8X32
#define	USE_FIELD_10X26

Functions
void	secp256k1_mpt_scalar_add (unsigned char *res, const unsigned char *a, const unsigned char *b)
void	secp256k1_mpt_scalar_mul (unsigned char *res, const unsigned char *a, const unsigned char *b)
void	secp256k1_mpt_scalar_inverse (unsigned char *res, const unsigned char *in)
void	secp256k1_mpt_scalar_negate (unsigned char *res, const unsigned char *in)
void	secp256k1_mpt_scalar_reduce32 (unsigned char out32[32], const unsigned char in32[32])

Detailed Description

Scalar Field Arithmetic Abstraction Layer.

This module provides a safe, portable interface for performing arithmetic in the scalar field of the secp256k1 curve (integers modulo \( n \), the group order).

Purpose: While libsecp256k1 exposes point operations via its public API, it does not typically expose low-level scalar arithmetic. However, protocols like Bulletproofs and ElGamal require extensive scalar math (e.g., polynomial evaluation, inner products) to be performed by the client.

Implementation: This file includes internal libsecp256k1 headers (scalar.h, scalar_impl.h) to access the optimized, constant-time scalar implementations.

Operations: All operations are performed modulo the curve order \( n \):

• Addition: \( a + b \pmod{n} \)
• Multiplication: \( a \cdot b \pmod{n} \)
• Inversion: \( a^{-1} \pmod{n} \)
• Negation: \( -a \pmod{n} \)

Platform Specifics: Includes logic for 128-bit integer support (int128.h) required for efficient computation on modern architectures (e.g., ARM64/Apple Silicon).

Warning

These functions operate on 32-byte big-endian scalars. Inputs must be properly reduced or handled by secp256k1_mpt_scalar_reduce32 before use if they might exceed \( n \).

Definition in file mpt_scalar.c.

Macro Definition Documentation

USE_FIELD_10X26

#define USE_FIELD_10X26

Definition at line 44 of file mpt_scalar.c.

USE_SCALAR_8X32

#define USE_SCALAR_8X32

Definition at line 41 of file mpt_scalar.c.

Function Documentation

secp256k1_mpt_scalar_add()

void secp256k1_mpt_scalar_add	(	unsigned char *	res,
		const unsigned char *	a,
		const unsigned char *	b )

Definition at line 60 of file mpt_scalar.c.

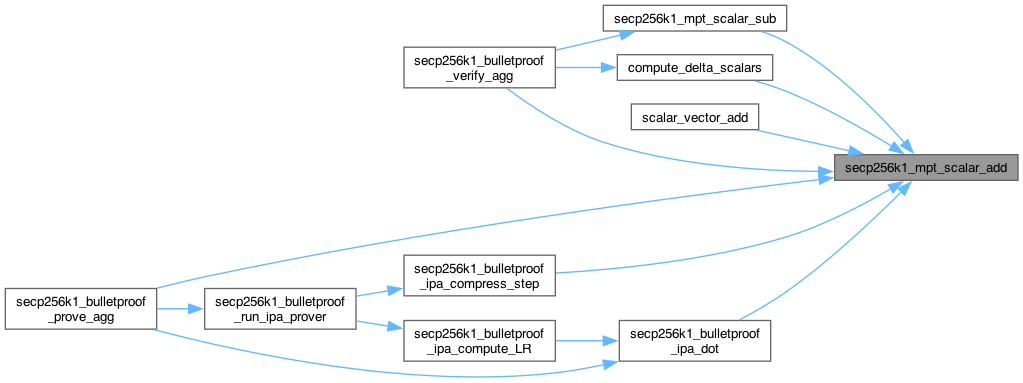

Here is the caller graph for this function:

secp256k1_mpt_scalar_inverse()

void secp256k1_mpt_scalar_inverse	(	unsigned char *	res,
		const unsigned char *	in )

Definition at line 86 of file mpt_scalar.c.

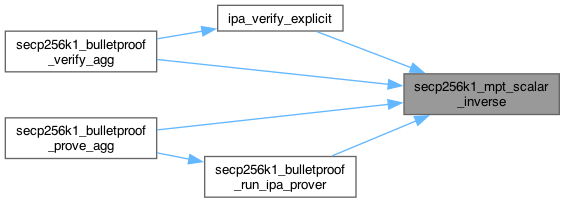

Here is the caller graph for this function:

secp256k1_mpt_scalar_mul()

void secp256k1_mpt_scalar_mul	(	unsigned char *	res,
		const unsigned char *	a,
		const unsigned char *	b )

Definition at line 73 of file mpt_scalar.c.

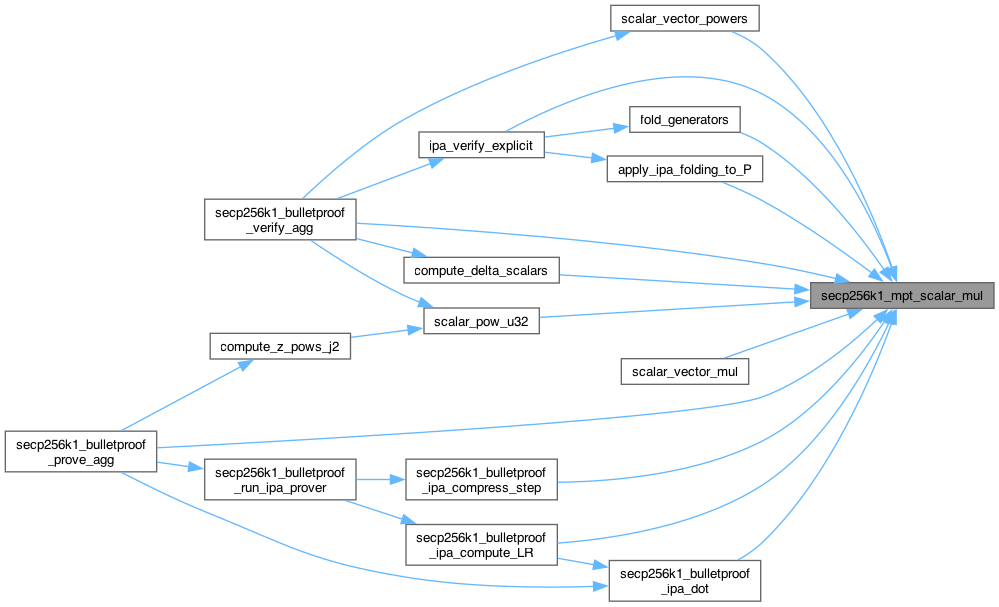

Here is the caller graph for this function:

secp256k1_mpt_scalar_negate()

void secp256k1_mpt_scalar_negate	(	unsigned char *	res,
		const unsigned char *	in )

Definition at line 96 of file mpt_scalar.c.

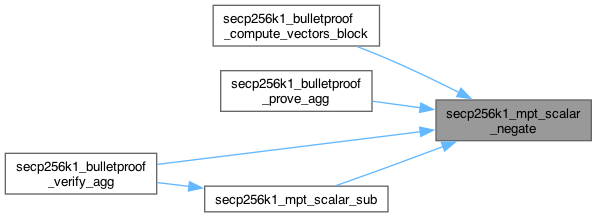

Here is the caller graph for this function:

secp256k1_mpt_scalar_reduce32()

void secp256k1_mpt_scalar_reduce32	(	unsigned char	out32[32],
		const unsigned char	in32[32] )

Definition at line 106 of file mpt_scalar.c.

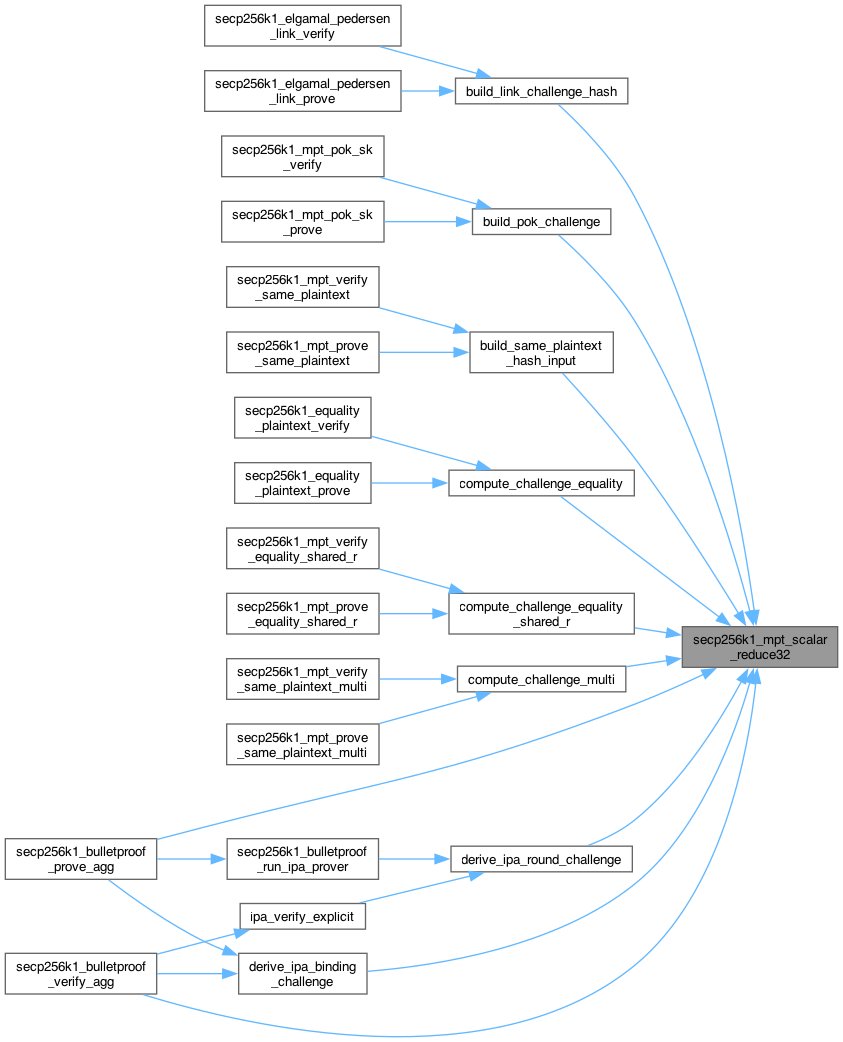

Here is the caller graph for this function:
