equality_proof.c File Reference

Zero-Knowledge Proof of Knowledge of Plaintext and Randomness. More...

#include "secp256k1_mpt.h"
#include <openssl/sha.h>
#include <openssl/rand.h>
#include <string.h>
#include <stdlib.h>

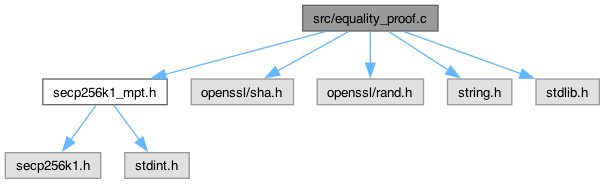

Include dependency graph for equality_proof.c:

Go to the source code of this file.

Functions
static int	pubkey_equal (const secp256k1_context *ctx, const secp256k1_pubkey *pk1, const secp256k1_pubkey *pk2)
static int	generate_random_scalar (const secp256k1_context *ctx, unsigned char *scalar)
static int	compute_amount_point (const secp256k1_context *ctx, secp256k1_pubkey *mG, uint64_t amount)
static void	compute_challenge_equality (const secp256k1_context *ctx, unsigned char *e_out, const secp256k1_pubkey *c1, const secp256k1_pubkey *c2, const secp256k1_pubkey *pk, const secp256k1_pubkey *mG, const secp256k1_pubkey *T1, const secp256k1_pubkey *T2, const unsigned char *tx_context_id)
int	secp256k1_equality_plaintext_prove (const secp256k1_context *ctx, unsigned char *proof, const secp256k1_pubkey *c1, const secp256k1_pubkey *c2, const secp256k1_pubkey *pk_recipient, uint64_t amount, const unsigned char *randomness_r, const unsigned char *tx_context_id)
	Generates a proof that an ElGamal ciphertext correctly encrypts a known plaintext m and that the prover knows the randomness r.
int	secp256k1_equality_plaintext_verify (const secp256k1_context *ctx, const unsigned char *proof, const secp256k1_pubkey *c1, const secp256k1_pubkey *c2, const secp256k1_pubkey *pk_recipient, uint64_t amount, const unsigned char *tx_context_id)
	Verifies a proof of knowledge of plaintext and randomness.

Detailed Description

Zero-Knowledge Proof of Knowledge of Plaintext and Randomness.

This module implements a Sigma protocol (Chaum-Pedersen style) to prove that an ElGamal ciphertext \( (C_1, C_2) \) encrypts a specific known plaintext \( m \) under a public key \( P \), and that the prover knows the randomness \( r \) used in the encryption.

Statement: The prover demonstrates knowledge of \( r \in \mathbb{Z}_q \) such that:

\[ C_1 = r \cdot G \]

\[ C_2 = m \cdot G + r \cdot P \]

Protocol:

1. Commitment: Prover samples \( t \leftarrow \mathbb{Z}_q \) and computes:

   \[ T_1 = t \cdot G \]

   \[ T_2 = t \cdot P \]

2. Challenge:

   \[ e = H(\text{"MPT_POK_PLAINTEXT_PROOF"} \parallel C_1 \parallel C_2 \parallel P \parallel T_1 \parallel T_2 \parallel \dots) \]

3. Response:

   \[ s = t + e \cdot r \pmod{q} \]

4. Verification: Verifier checks:

   \[ s \cdot G \stackrel{?}{=} T_1 + e \cdot C_1 \]

   \[ s \cdot P \stackrel{?}{=} T_2 + e \cdot (C_2 - m \cdot G) \]

Context: This proof is used in ConfidentialMPTConvert (explicit randomness verification) and ConfidentialMPTClawback (where the issuer proves the ciphertext matches a revealed amount using their secret key, a variant of this logic).

See also

[Spec (ConfidentialMPT_20260201.pdf) Section 3.3.3] Optimized Ciphertext-Amount Consistency Protocol

Definition in file equality_proof.c.

Function Documentation

compute_amount_point()

int compute_amount_point ( const secp256k1_context * ctx, secp256k1_pubkey * mG, uint64_t amount )

static

Definition at line 60 of file equality_proof.c.

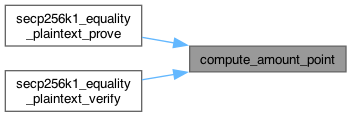

Here is the caller graph for this function:

compute_challenge_equality()

void compute_challenge_equality ( const secp256k1_context * ctx, unsigned char * e_out, const secp256k1_pubkey * c1, const secp256k1_pubkey * c2, const secp256k1_pubkey * pk, const secp256k1_pubkey * mG, const secp256k1_pubkey * T1, const secp256k1_pubkey * T2, const unsigned char * tx_context_id )

static

Streaming Hash Builder (Avoids large stack buffers)

Definition at line 72 of file equality_proof.c.

Here is the call graph for this function:

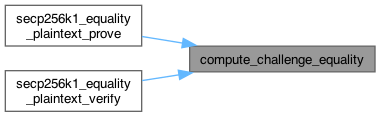

Here is the caller graph for this function:

generate_random_scalar()

int generate_random_scalar ( const secp256k1_context * ctx, unsigned char * scalar )

static

Definition at line 53 of file equality_proof.c.

Here is the caller graph for this function:

pubkey_equal()

int pubkey_equal ( const secp256k1_context * ctx, const secp256k1_pubkey * pk1, const secp256k1_pubkey * pk2 )

static

Definition at line 49 of file equality_proof.c.

Here is the caller graph for this function:

secp256k1_equality_plaintext_prove()

int secp256k1_equality_plaintext_prove	(	const secp256k1_context *	ctx,
		unsigned char *	proof,
		const secp256k1_pubkey *	c1,
		const secp256k1_pubkey *	c2,
		const secp256k1_pubkey *	pk_recipient,
		uint64_t	amount,
		const unsigned char *	randomness_r,
		const unsigned char *	tx_context_id )

Generates a proof that an ElGamal ciphertext correctly encrypts a known plaintext m and that the prover knows the randomness r.

Parameters

[in]	ctx	A pointer to a valid secp256k1 context object, initialized for signing.
[out]	proof	A pointer to a 98-byte buffer to store the proof (T1 [33 bytes] || T2 [33 bytes] || s [32 bytes]).
[in]	c1	The C1 component of the ciphertext (r*G).
[in]	c2	The C2 component of the ciphertext (m*G + r*Pk).
[in]	pk_recipient	The public key used for encryption.
[in]	amount	The known plaintext value m.
[in]	randomness_r	The 32-byte secret random scalar r used in encryption.
[in]	tx_context_id	A 32-byte unique identifier for the transaction context.

Returns

1 on success, 0 on failure.

Definition at line 115 of file equality_proof.c.

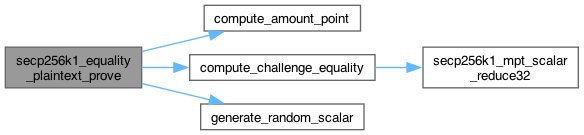

Here is the call graph for this function:

secp256k1_equality_plaintext_verify()

int secp256k1_equality_plaintext_verify	(	const secp256k1_context *	ctx,
		const unsigned char *	proof,
		const secp256k1_pubkey *	c1,
		const secp256k1_pubkey *	c2,
		const secp256k1_pubkey *	pk_recipient,
		uint64_t	amount,
		const unsigned char *	tx_context_id )

Verifies a proof of knowledge of plaintext and randomness.

Checks if the proof correctly demonstrates that (C1, C2) encrypts m under pk_recipient.

Parameters

[in]	ctx	A pointer to a valid secp256k1 context object, initialized for verification.
[in]	proof	A pointer to the 98-byte proof to verify.
[in]	c1	The C1 component of the ciphertext.
[in]	c2	The C2 component of the ciphertext.
[in]	pk_recipient	The public key used for encryption.
[in]	amount	The known plaintext value m.
[in]	tx_context_id	A 32-byte unique identifier for the transaction context.

Returns

1 if the proof is valid, 0 otherwise.

Definition at line 181 of file equality_proof.c.

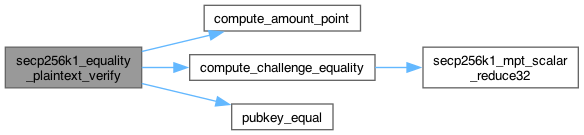

Here is the call graph for this function:
