commitments.c File Reference

Pedersen Commitments and NUMS Generator Derivation. More...

#include "secp256k1_mpt.h"
#include <string.h>
#include <openssl/sha.h>
#include <openssl/crypto.h>

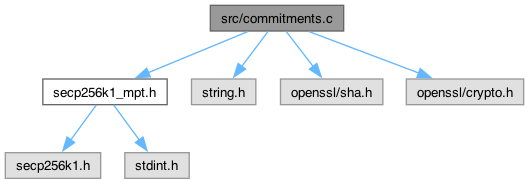

Include dependency graph for commitments.c:

Go to the source code of this file.

Functions
int	secp256k1_mpt_hash_to_point_nums (const secp256k1_context *ctx, secp256k1_pubkey *out, const unsigned char *label, size_t label_len, uint32_t index)
	Deterministically derives a NUMS (Nothing-Up-My-Sleeve) generator point.
int	secp256k1_mpt_get_h_generator (const secp256k1_context *ctx, secp256k1_pubkey *h)
	Derives the secondary base point (H) for Pedersen commitments.
int	secp256k1_mpt_get_generator_vector (const secp256k1_context *ctx, secp256k1_pubkey *vec, size_t n, const unsigned char *label, size_t label_len)
	Generates a vector of N independent NUMS generators.
int	secp256k1_mpt_pedersen_commit (const secp256k1_context *ctx, secp256k1_pubkey *commitment, uint64_t amount, const unsigned char *rho)
	Creates a Pedersen Commitment C = amount*G + rho*H.

Detailed Description

Pedersen Commitments and NUMS Generator Derivation.

This module implements the core commitment scheme used in Confidential MPTs. It provides functions to generate Pedersen commitments of the form \( C = v \cdot G + r \cdot H \), where \( G \) and \( H \) are independent generators of the secp256k1 curve.

NUMS Generators: To ensure the binding property of the commitments (i.e., that a user cannot open a commitment to two different values), the discrete logarithm of \( H \) with respect to \( G \) must be unknown.

This implementation uses a "Nothing-Up-My-Sleeve" (NUMS) construction:

• Generators are derived deterministically using SHA-256 hash-to-curve.
• The domain separation tag is "MPT_BULLETPROOF_V1_NUMS".
• This guarantees that no backdoors exist in the system parameters.

Commitment Logic: The commitment function handles the edge case where the amount \( v = 0 \). Since the point at infinity (identity) cannot be serialized in standard compressed form, the term \( 0 \cdot G \) is handled logically, resulting in \( C = r \cdot H \).

See also

[Spec (ConfidentialMPT_20260201.pdf) Section 3.3.5] Linking ElGamal Ciphertexts and Pedersen Commitments

Definition in file commitments.c.

Function Documentation

secp256k1_mpt_get_generator_vector()

int secp256k1_mpt_get_generator_vector	(	const secp256k1_context *	ctx,
		secp256k1_pubkey *	vec,
		size_t	n,
		const unsigned char *	label,
		size_t	label_len )

Generates a vector of N independent NUMS generators.

• Used to populate the G_i and H_i vectors for Bulletproofs. Each point is derived deterministically from the provided label and its index.

Parameters

ctx	secp256k1 context.
vec	Array to store the resulting generators.
n	Number of generators to derive.
label	The label string ("G" or "H").
label_len	Length of the label string.

Returns

1 on success, 0 on failure.

Definition at line 124 of file commitments.c.

Here is the call graph for this function:

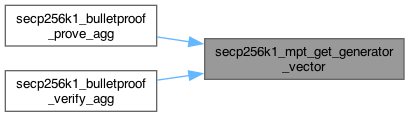

Here is the caller graph for this function:

secp256k1_mpt_get_h_generator()

int secp256k1_mpt_get_h_generator	(	const secp256k1_context *	ctx,
		secp256k1_pubkey *	h )

Derives the secondary base point (H) for Pedersen commitments.

• This derives a NUMS point using the label "H" at index 0. This H is used alongside the standard generator G to form the commitment C = v*G + r*H. Using a NUMS point ensures that the discrete logarithm of H with respect to G is unknown.

Parameters

ctx	secp256k1 context.
h	The resulting H generator public key.

Returns

1 on success, 0 on failure.

Definition at line 108 of file commitments.c.

Here is the call graph for this function:

Here is the caller graph for this function:

secp256k1_mpt_hash_to_point_nums()

int secp256k1_mpt_hash_to_point_nums	(	const secp256k1_context *	ctx,
		secp256k1_pubkey *	out,
		const unsigned char *	label,
		size_t	label_len,
		uint32_t	index )

Deterministically derives a NUMS (Nothing-Up-My-Sleeve) generator point.

• Uses SHA-256 try-and-increment to find a valid x-coordinate. This ensures the discrete logarithm of the resulting point is unknown, which is a core security requirement for Bulletproof binding and vector commitments.

Parameters

ctx	secp256k1 context (VERIFY flag required).
out	The derived public key generator.
label	Domain/vector label (e.g., "G" or "H").
label_len	Length of the label string.
index	Vector index (enforced Big-Endian).

Returns

1 on success, 0 on failure.

Definition at line 48 of file commitments.c.

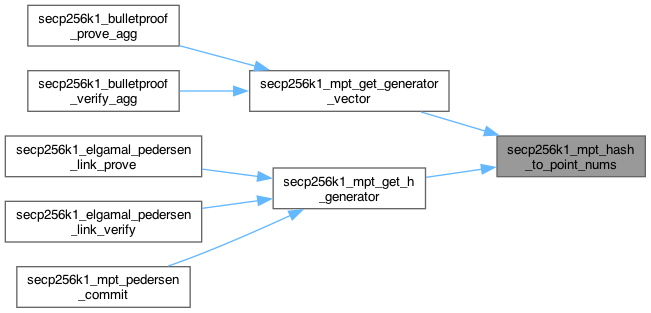

Here is the caller graph for this function:

secp256k1_mpt_pedersen_commit()

int secp256k1_mpt_pedersen_commit	(	const secp256k1_context *	ctx,
		secp256k1_pubkey *	commitment,
		uint64_t	amount,
		const unsigned char *	rho )

Creates a Pedersen Commitment C = amount*G + rho*H.

• Parameters

  ctx	secp256k1 context.
  commitment	Output commitment public key.
  amount	The value to commit to.
  rho	The blinding factor (randomness).

  Returns

  1 on success, 0 on failure.

Definition at line 149 of file commitments.c.

Here is the call graph for this function:
