Aggregated Bulletproof Range Proofs (Logarithmic Size). More...

#include "secp256k1_mpt.h"
#include <openssl/sha.h>
#include <openssl/rand.h>
#include <string.h>
#include <assert.h>
#include <stdlib.h>
#include <secp256k1.h>

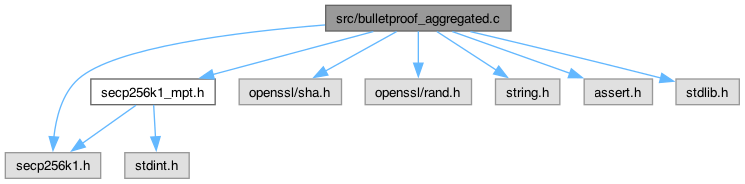

Include dependency graph for bulletproof_aggregated.c:

Go to the source code of this file.

Macros
#define	BP_VALUE_BITS 64
#define	BP_TOTAL_BITS(m)
#define	SER_PT(P)

Functions
static size_t	bp_ipa_rounds (size_t total_bits)
static int	generate_random_scalar (const secp256k1_context ctx, unsigned char scalar_bytes)
static int	compute_amount_point (const secp256k1_context ctx, secp256k1_pubkey mG, uint64_t amount)
static int	add_term (const secp256k1_context ctx, secp256k1_pubkey acc, int acc_inited, const secp256k1_pubkey term)
static void	secp256k1_mpt_scalar_sub (unsigned char res, const unsigned char a, const unsigned char *b)
int	secp256k1_bulletproof_ipa_dot (const secp256k1_context ctx, unsigned char out, const unsigned char a, const unsigned char b, size_t n)
int	secp256k1_bulletproof_add_point_to_accumulator (const secp256k1_context ctx, secp256k1_pubkey acc, const secp256k1_pubkey *term)
int	secp256k1_bulletproof_ipa_msm (const secp256k1_context ctx, secp256k1_pubkey r_out, const secp256k1_pubkey points, const unsigned char scalars, size_t n)
static int	msm_try_add (const secp256k1_context ctx, secp256k1_pubkey acc, int acc_inited, const secp256k1_pubkey points, const unsigned char *scalars, size_t n)
void	scalar_vector_mul (const secp256k1_context *ctx, unsigned char res[][32], unsigned char a[][32], unsigned char b[][32], size_t n)
void	scalar_vector_add (const secp256k1_context *ctx, unsigned char res[][32], unsigned char a[][32], unsigned char b[][32], size_t n)
void	scalar_vector_powers (const secp256k1_context ctx, unsigned char res[][32], const unsigned char y, size_t n)
static void	scalar_pow_u32 (const secp256k1_context *ctx, unsigned char y_pow_out[32], const unsigned char y[32], unsigned int i)
static void	compute_z_pows_j2 (const secp256k1_context ctx, unsigned char(z_j2)[32], const unsigned char z[32], size_t m)
static int	secp256k1_bulletproof_point_scalar_mul (const secp256k1_context ctx, secp256k1_pubkey r_out, const secp256k1_pubkey p_in, const unsigned char s_scalar)
static void	compute_delta_scalars (const secp256k1_context ctx, unsigned char(y_block_sum)[32], unsigned char two_sum[32], const unsigned char y[32], size_t m)
static int	pubkey_equal (const secp256k1_context ctx, const secp256k1_pubkey a, const secp256k1_pubkey *b)
int	fold_generators (const secp256k1_context ctx, secp256k1_pubkey final_point, const secp256k1_pubkey generators, const unsigned char u_flat, const unsigned char *uinv_flat, size_t n, size_t rounds, int is_H)
int	apply_ipa_folding_to_P (const secp256k1_context ctx, secp256k1_pubkey P, const secp256k1_pubkey L_vec, const secp256k1_pubkey R_vec, const unsigned char u_flat, const unsigned char uinv_flat, size_t rounds)
int	secp256k1_bulletproof_ipa_compute_LR (const secp256k1_context ctx, secp256k1_pubkey L, secp256k1_pubkey R, const unsigned char a_L, const unsigned char a_R, const unsigned char b_L, const unsigned char b_R, const secp256k1_pubkey G_L, const secp256k1_pubkey G_R, const secp256k1_pubkey H_L, const secp256k1_pubkey H_R, const secp256k1_pubkey U, const unsigned char *ux, size_t half_n)
int	secp256k1_bulletproof_ipa_compress_step (const secp256k1_context ctx, unsigned char a, unsigned char b, secp256k1_pubkey G, secp256k1_pubkey H, size_t half_n, const unsigned char x, const unsigned char *x_inv)
static int	scalar_is_zero (const unsigned char s[32])
int	derive_ipa_binding_challenge (const secp256k1_context ctx, unsigned char ux_out, const unsigned char commit_inp_32, const unsigned char dot_32)
int	derive_ipa_round_challenge (const secp256k1_context ctx, unsigned char u_out[32], const unsigned char last_challenge[32], const secp256k1_pubkey L, const secp256k1_pubkey *R)
int	secp256k1_bulletproof_run_ipa_prover (const secp256k1_context ctx, const secp256k1_pubkey g, secp256k1_pubkey G_vec, secp256k1_pubkey H_vec, unsigned char a_vec, unsigned char b_vec, size_t n, const unsigned char ipa_transcript_id[32], const unsigned char ux_scalar[32], secp256k1_pubkey L_out, secp256k1_pubkey R_out, size_t max_rounds, size_t *rounds_out, unsigned char a_final[32], unsigned char b_final[32])
static int	ipa_verify_explicit (const secp256k1_context ctx, const secp256k1_pubkey G_vec, const secp256k1_pubkey H_vec, const secp256k1_pubkey U, const secp256k1_pubkey P_in, const secp256k1_pubkey L_vec, const secp256k1_pubkey *R_vec, size_t n, const unsigned char a_final[32], const unsigned char b_final[32], const unsigned char ux[32], const unsigned char ipa_transcript_id[32])
int	secp256k1_bulletproof_compute_vectors_block (const secp256k1_context ctx, uint64_t value, size_t block_index, unsigned char al, unsigned char ar, unsigned char sl, unsigned char *sr)
int	secp256k1_bulletproof_create_commitment (const secp256k1_context ctx, secp256k1_pubkey commitment_C, uint64_t value, const unsigned char blinding_factor, const secp256k1_pubkey pk_base)
	Computes a Pedersen Commitment: C = valueG + blinding_factorPk_base.
int	secp256k1_bulletproof_prove_agg (const secp256k1_context ctx, unsigned char proof_out, size_t proof_len, const uint64_t values, const unsigned char blindings_flat, size_t m, const secp256k1_pubkey pk_base, const unsigned char *context_id)
int	secp256k1_bulletproof_verify_agg (const secp256k1_context ctx, const secp256k1_pubkey G_vec, const secp256k1_pubkey H_vec, const unsigned char proof, size_t proof_len, const secp256k1_pubkey commitment_C_vec, size_t m, const secp256k1_pubkey pk_base, const unsigned char *context_id)

Detailed Description

Aggregated Bulletproof Range Proofs (Logarithmic Size).

This module implements non-interactive zero-knowledge range proofs based on the Bulletproofs protocol (Bünz et al., 2018). It allows a prover to demonstrate that a committed value lies within the range \( [0, 2^{64}) \) without revealing the value itself.

Protocol Overview: The implementation follows the standard single-value and aggregated Bulletproof logic:

Pedersen Commitment: The value \( v \) is committed as \( V = v \cdot G + r \cdot H \).
Bit Decomposition: The value is decomposed into 64 bits \( \mathbf{a}_L \).
Polynomial Commitment: The prover commits to polynomials defining the range constraints.
Inner Product Argument (IPA): A recursive argument reduces the proof size to logarithmic complexity \( \mathcal{O}(\log n) \).

Aggregation: This implementation supports aggregating \( m \) proofs into a single verification process. The total vector length is \( n = 64 \cdot m \). Aggregation significantly reduces the on-chain footprint compared to \( m \) individual proofs.

Fiat-Shamir Transcript: The non-interactive challenge generation follows a strict dependency chain to ensure binding and special soundness:

\( \mathcal{T}_0 \): Domain Tag || ContextID || Value Commitments ( \( V \))
\( y, z \): Derived from \( \mathcal{T}_0 \parallel A \parallel S \)
\( x \): Derived from \( z \parallel T_1 \parallel T_2 \)
\( \mu \): Derived from \( x \) (for the IPA)

Dependencies:

Relies on secp256k1 for elliptic curve arithmetic.
Uses SHA256 for the Fiat-Shamir transformation.

See also: [Spec (ConfidentialMPT_20260201.pdf) Section 3.3.6 Range Proof (using Bulletproofs)]

Definition in file bulletproof_aggregated.c.

Macro Definition Documentation

◆ BP_TOTAL_BITS

#define BP_TOTAL_BITS ( m )

Value:

((size_t)(BP_VALUE_BITS * (m)))

BP_VALUE_BITS

#define BP_VALUE_BITS

Definition bulletproof_aggregated.c:47

Definition at line 50 of file bulletproof_aggregated.c.

◆ BP_VALUE_BITS

#define BP_VALUE_BITS 64

Definition at line 47 of file bulletproof_aggregated.c.

◆ SER_PT

#define SER_PT ( P )

Value:

    do { \
    ser_len = 33; \
    if (!secp256k1_ec_pubkey_serialize(ctx, ptr, &ser_len, &(P), SECP256K1_EC_COMPRESSED)) goto cleanup; \
    if (ser_len != 33) goto cleanup; \
    ptr += 33; \
} while (0)

Function Documentation

◆ add_term()

int add_term	(	const secp256k1_context *	ctx,
		secp256k1_pubkey *	acc,
		int *	acc_inited,
		const secp256k1_pubkey *	term )

static

Safely adds a point to an accumulator (acc += term). Handles uninitialized accumulators by assignment instead of addition.

Definition at line 102 of file bulletproof_aggregated.c.

Here is the caller graph for this function:

◆ apply_ipa_folding_to_P()

int apply_ipa_folding_to_P	(	const secp256k1_context *	ctx,
		secp256k1_pubkey *	P,
		const secp256k1_pubkey *	L_vec,
		const secp256k1_pubkey *	R_vec,
		const unsigned char *	u_flat,
		const unsigned char *	uinv_flat,
		size_t	rounds )

Definition at line 442 of file bulletproof_aggregated.c.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ bp_ipa_rounds()

size_t bp_ipa_rounds ( size_t total_bits )

inlinestatic

Definition at line 53 of file bulletproof_aggregated.c.

Here is the caller graph for this function:

◆ compute_amount_point()

int compute_amount_point	(	const secp256k1_context *	ctx,
		secp256k1_pubkey *	mG,
		uint64_t	amount )

static

Computes the point M = amount * G. Internal helper used by commitment construction.

Definition at line 81 of file bulletproof_aggregated.c.

Here is the caller graph for this function:

◆ compute_delta_scalars()

void compute_delta_scalars	(	const secp256k1_context *	ctx,
		unsigned char(*)	y_block_sum[32],
		unsigned char	two_sum[32],
		const unsigned char	y[32],
		size_t	m )

static

Computes per-block y-power sums for aggregated Bulletproofs. For block j (0-based): y_block_sum[j] = sum_{i=0}^{63} y^{64*j + i} Also computes: two_sum = sum_{i=0}^{63} 2^i These are used by the caller to construct delta(y, z).

Definition at line 335 of file bulletproof_aggregated.c.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ compute_z_pows_j2()

void compute_z_pows_j2	(	const secp256k1_context *	ctx,
		unsigned char(*)	z_j2[32],
		const unsigned char	z[32],
		size_t	m )

static

z_j2 = z^(j+2) for j = 0..m-1 (small exponent)

Definition at line 303 of file bulletproof_aggregated.c.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ derive_ipa_binding_challenge()

int derive_ipa_binding_challenge	(	const secp256k1_context *	ctx,
		unsigned char *	ux_out,
		const unsigned char *	commit_inp_32,
		const unsigned char *	dot_32 )

Definition at line 690 of file bulletproof_aggregated.c.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ derive_ipa_round_challenge()

int derive_ipa_round_challenge	(	const secp256k1_context *	ctx,
		unsigned char	u_out[32],
		const unsigned char	last_challenge[32],
		const secp256k1_pubkey *	L,
		const secp256k1_pubkey *	R )

Derive u = H(last_challenge || L || R) reduced to a valid scalar. IMPORTANT: use the SAME exact logic in verifier.

Definition at line 724 of file bulletproof_aggregated.c.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ fold_generators()

int fold_generators	(	const secp256k1_context *	ctx,
		secp256k1_pubkey *	final_point,
		const secp256k1_pubkey *	generators,
		const unsigned char *	u_flat,
		const unsigned char *	uinv_flat,
		size_t	n,
		size_t	rounds,
		int	is_H )

u_flat and uinv_flat are arrays of length (rounds * 32): u_j = u_flat + 32*j u_j_inv = uinv_flat + 32*j

Definition at line 381 of file bulletproof_aggregated.c.

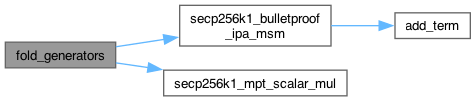

Here is the call graph for this function:

Here is the caller graph for this function:

◆ generate_random_scalar()

int generate_random_scalar	(	const secp256k1_context *	ctx,
		unsigned char *	scalar_bytes )

static

Generates a secure 32-byte random scalar. Returns 1 on success, 0 on failure.

Definition at line 65 of file bulletproof_aggregated.c.

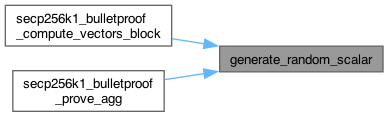

Here is the caller graph for this function:

◆ ipa_verify_explicit()

int ipa_verify_explicit	(	const secp256k1_context *	ctx,
		const secp256k1_pubkey *	G_vec,
		const secp256k1_pubkey *	H_vec,
		const secp256k1_pubkey *	U,
		const secp256k1_pubkey *	P_in,
		const secp256k1_pubkey *	L_vec,
		const secp256k1_pubkey *	R_vec,
		size_t	n,
		const unsigned char	a_final[32],
		const unsigned char	b_final[32],
		const unsigned char	ux[32],
		const unsigned char	ipa_transcript_id[32] )

static

Definition at line 874 of file bulletproof_aggregated.c.

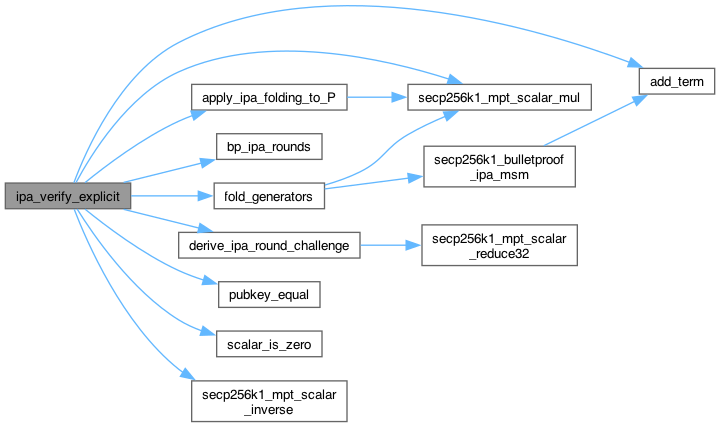

Here is the call graph for this function:

Here is the caller graph for this function:

◆ msm_try_add()

int msm_try_add	(	const secp256k1_context *	ctx,
		secp256k1_pubkey *	acc,
		int *	acc_inited,
		const secp256k1_pubkey *	points,
		const unsigned char *	scalars,
		size_t	n )

static

Definition at line 224 of file bulletproof_aggregated.c.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ pubkey_equal()

int pubkey_equal	(	const secp256k1_context *	ctx,
		const secp256k1_pubkey *	a,
		const secp256k1_pubkey *	b )

static

Compare two secp256k1 public keys for equality.

Definition at line 373 of file bulletproof_aggregated.c.

Here is the caller graph for this function:

◆ scalar_is_zero()

int scalar_is_zero ( const unsigned char s[32] )

static

Definition at line 672 of file bulletproof_aggregated.c.

Here is the caller graph for this function:

◆ scalar_pow_u32()

void scalar_pow_u32	(	const secp256k1_context *	ctx,
		unsigned char	y_pow_out[32],
		const unsigned char	y[32],
		unsigned int	i )

static

Compute y^i for small i.

Definition at line 285 of file bulletproof_aggregated.c.

Here is the call graph for this function:

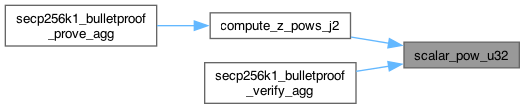

Here is the caller graph for this function:

◆ scalar_vector_add()

void scalar_vector_add	(	const secp256k1_context *	ctx,
		unsigned char	res[][32],
		unsigned char	a[][32],
		unsigned char	b[][32],
		size_t	n )

Computes component-wise: result[i] = a[i] + b[i]

Definition at line 255 of file bulletproof_aggregated.c.

Here is the call graph for this function:

◆ scalar_vector_mul()

void scalar_vector_mul	(	const secp256k1_context *	ctx,
		unsigned char	res[][32],
		unsigned char	a[][32],
		unsigned char	b[][32],
		size_t	n )

Computes component-wise: result[i] = a[i] * b[i] (Hadamard product)

Definition at line 245 of file bulletproof_aggregated.c.

Here is the call graph for this function:

◆ scalar_vector_powers()

void scalar_vector_powers	(	const secp256k1_context *	ctx,
		unsigned char	res[][32],
		const unsigned char *	y,
		size_t	n )

Fills a vector with powers of a scalar: [1, y, y^2, ..., y^{n-1}]

Definition at line 266 of file bulletproof_aggregated.c.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ secp256k1_bulletproof_add_point_to_accumulator()

int secp256k1_bulletproof_add_point_to_accumulator	(	const secp256k1_context *	ctx,
		secp256k1_pubkey *	acc,
		const secp256k1_pubkey *	term )

Internal helper for multi-scalar multiplication. Adds a point to the accumulator.

Definition at line 166 of file bulletproof_aggregated.c.

◆ secp256k1_bulletproof_compute_vectors_block()

int secp256k1_bulletproof_compute_vectors_block	(	const secp256k1_context *	ctx,
		uint64_t	value,
		size_t	block_index,
		unsigned char *	al,
		unsigned char *	ar,
		unsigned char *	sl,
		unsigned char *	sr )

Phase 1, Step 3 (Aggregated): Compute al, ar, sl, sr vectors for ONE value block inside an aggregated proof.

The caller is responsible for:

allocating al/ar/sl/sr of length (BP_VALUE_BITS * m)
calling this once per value with block_index = j

Block layout: bits for value j occupy indices: [BP_VALUE_BITS * j .. BP_VALUE_BITS * j + BP_VALUE_BITS - 1]

Definition at line 998 of file bulletproof_aggregated.c.

Here is the call graph for this function:

◆ secp256k1_bulletproof_create_commitment()

int secp256k1_bulletproof_create_commitment	(	const secp256k1_context *	ctx,
		secp256k1_pubkey *	commitment_C,
		uint64_t	value,
		const unsigned char *	blinding_factor,
		const secp256k1_pubkey *	pk_base )

Computes a Pedersen Commitment: C = value*G + blinding_factor*Pk_base.

Computes the Pedersen Commitment: C = value*G + blinding_factor*Pk_base.

Definition at line 1061 of file bulletproof_aggregated.c.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ secp256k1_bulletproof_ipa_compress_step()

int secp256k1_bulletproof_ipa_compress_step	(	const secp256k1_context *	ctx,
		unsigned char *	a,
		unsigned char *	b,
		secp256k1_pubkey *	G,
		secp256k1_pubkey *	H,
		size_t	half_n,
		const unsigned char *	x,
		const unsigned char *	x_inv )

One IPA compression step (in-place).

Input vectors are length (2*half_n): a[0..2*half_n-1], b[0..2*half_n-1], G[0..2*half_n-1], H[0..2*half_n-1]

After return, the first half contains folded vectors: a'[0..half_n-1], b'[0..half_n-1], G'[0..half_n-1], H'[0..half_n-1]

Formulas (matching prover/verifier conventions): a'[i] = aL[i]*x + aR[i]*x_inv b'[i] = bL[i]*x_inv + bR[i]*x G'[i] = GL[i]*x_inv + GR[i]*x H'[i] = HL[i]*x + HR[i]*x_inv

Definition at line 607 of file bulletproof_aggregated.c.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ secp256k1_bulletproof_ipa_compute_LR()

int secp256k1_bulletproof_ipa_compute_LR	(	const secp256k1_context *	ctx,
		secp256k1_pubkey *	L,
		secp256k1_pubkey *	R,
		const unsigned char *	a_L,
		const unsigned char *	a_R,
		const unsigned char *	b_L,
		const unsigned char *	b_R,
		const secp256k1_pubkey *	G_L,
		const secp256k1_pubkey *	G_R,
		const secp256k1_pubkey *	H_L,
		const secp256k1_pubkey *	H_R,
		const secp256k1_pubkey *	U,
		const unsigned char *	ux,
		size_t	half_n )

Computes the cross-term commitments L and R. L = <a_L, G_R> + <b_R, H_L> + c_L * ux * g R = <a_R, G_L> + <b_L, H_R> + c_R * ux * g ctx The context. L Output: Commitment point L_j. R Output: Commitment point R_j. half_n Length of the input vector halves. g The blinding generator point (Pk_base in our case). return 1 on success, 0 on failure.

Definition at line 511 of file bulletproof_aggregated.c.

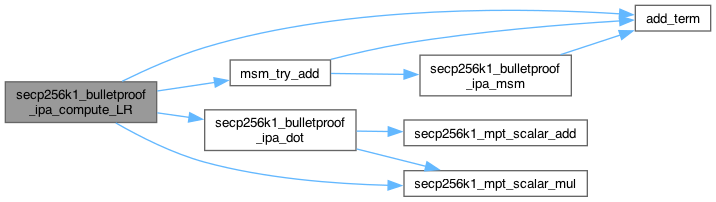

Here is the call graph for this function:

Here is the caller graph for this function:

◆ secp256k1_bulletproof_ipa_dot()

int secp256k1_bulletproof_ipa_dot	(	const secp256k1_context *	ctx,
		unsigned char *	out,
		const unsigned char *	a,
		const unsigned char *	b,
		size_t	n )

Computes the modular dot product c = <a, b> = sum(a[i] * b[i]) mod q. This function calculates the inner product of two scalar vectors. ctx The context. out Output 32-byte scalar (the inner product result). a Input scalar vector A (n * 32 bytes). b Input scalar vector B (n * 32 bytes). n The length of the vectors. 1 on success, 0 on failure.

Definition at line 144 of file bulletproof_aggregated.c.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ secp256k1_bulletproof_ipa_msm()

int secp256k1_bulletproof_ipa_msm	(	const secp256k1_context *	ctx,
		secp256k1_pubkey *	r_out,
		const secp256k1_pubkey *	points,
		const unsigned char *	scalars,
		size_t	n )

Computes Multiscalar Multiplication (MSM): R = sum(s[i] * P[i]). ctx The context. r_out Output point (the sum R). points Array of N input points (secp256k1_pubkey). scalars Flat array of N 32-byte scalars. n The number of terms (N). return 1 on success, 0 on failure. NOTE: This MSM is used only for Bulletproofs where all scalars are public. It is NOT constant-time with respect to scalars and MUST NOT be used for secret-key operations.

Definition at line 190 of file bulletproof_aggregated.c.

Here is the call graph for this function:

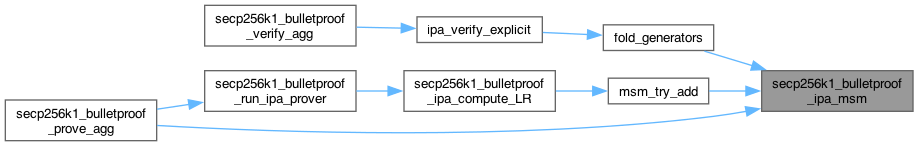

Here is the caller graph for this function:

◆ secp256k1_bulletproof_point_scalar_mul()

int secp256k1_bulletproof_point_scalar_mul	(	const secp256k1_context *	ctx,
		secp256k1_pubkey *	r_out,
		const secp256k1_pubkey *	p_in,
		const unsigned char *	s_scalar )

static

Point = Scalar * Point (using public API)

Definition at line 317 of file bulletproof_aggregated.c.

◆ secp256k1_bulletproof_prove_agg()

int secp256k1_bulletproof_prove_agg	(	const secp256k1_context *	ctx,
		unsigned char *	proof_out,
		size_t *	proof_len,
		const uint64_t *	values,
		const unsigned char *	blindings_flat,
		size_t	m,
		const secp256k1_pubkey *	pk_base,
		const unsigned char *	context_id )

Generates an aggregated Bulletproof for m values.

This function constructs a range proof asserting that all m values are within the [0, 2^64) range. The proof is serialized into proof_out.

Inputs:

values: Array of m 64-bit integers to prove.
blindings_flat: Array of m 32-byte blinding factors (one per value).
m: Number of values to aggregate (must be a power of 2).
pk_base: Generator H used for the commitments (C = vG + rH).
context_id: Optional 32-byte unique ID to bind the proof to a context.

Outputs:

proof_out: Buffer to receive the serialized proof.
proof_len: On input, size of proof_out. On output, actual proof size.

Returns 1 on success, 0 on failure.

Definition at line 1114 of file bulletproof_aggregated.c.

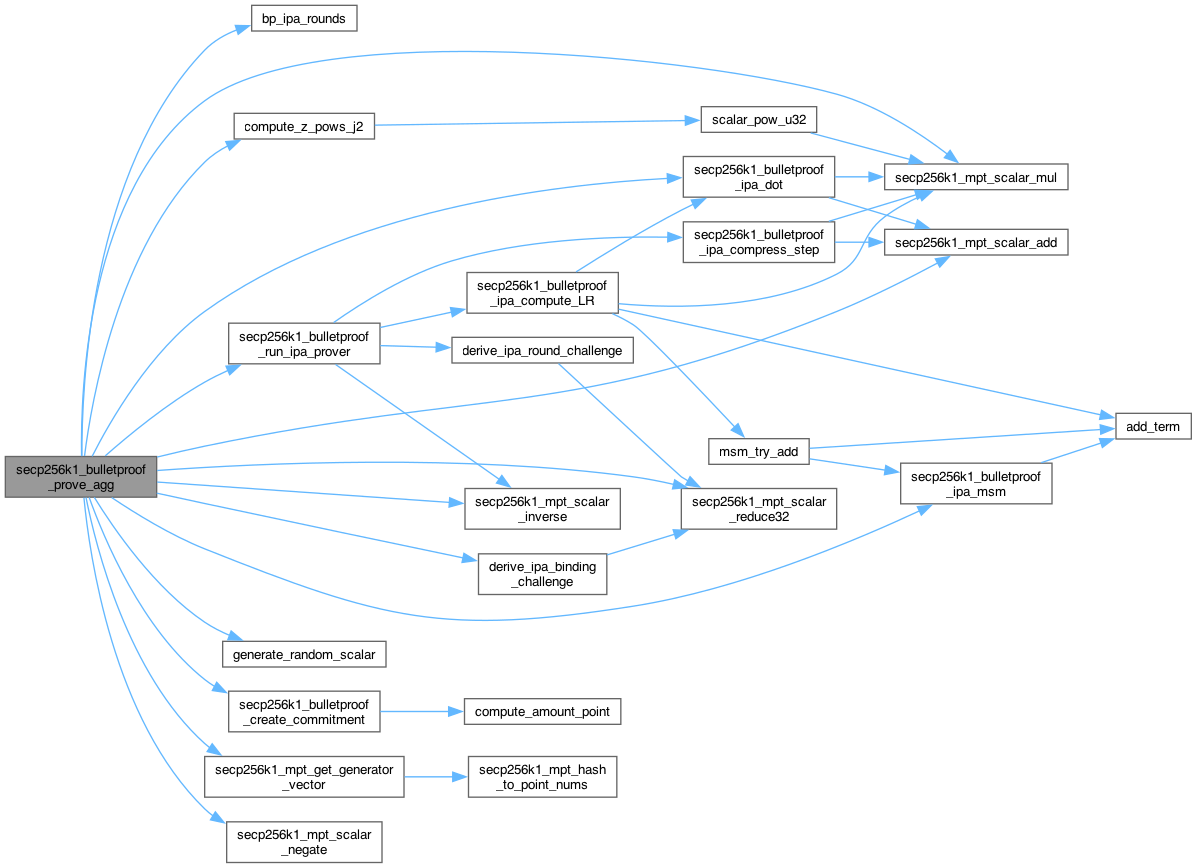

Here is the call graph for this function:

◆ secp256k1_bulletproof_run_ipa_prover()

int secp256k1_bulletproof_run_ipa_prover	(	const secp256k1_context *	ctx,
		const secp256k1_pubkey *	g,
		secp256k1_pubkey *	G_vec,
		secp256k1_pubkey *	H_vec,
		unsigned char *	a_vec,
		unsigned char *	b_vec,
		size_t	n,
		const unsigned char	ipa_transcript_id[32],
		const unsigned char	ux_scalar[32],
		secp256k1_pubkey *	L_out,
		secp256k1_pubkey *	R_out,
		size_t	max_rounds,
		size_t *	rounds_out,
		unsigned char	a_final[32],
		unsigned char	b_final[32] )

Runs the Inner Product Argument (IPA) prover. Recursively folds vectors G, H, a, and b into a single final term, producing log2(n) pairs of cross-term commitments (stored in L_out/R_out). Returns 1 on success, 0 on failure.

Definition at line 759 of file bulletproof_aggregated.c.

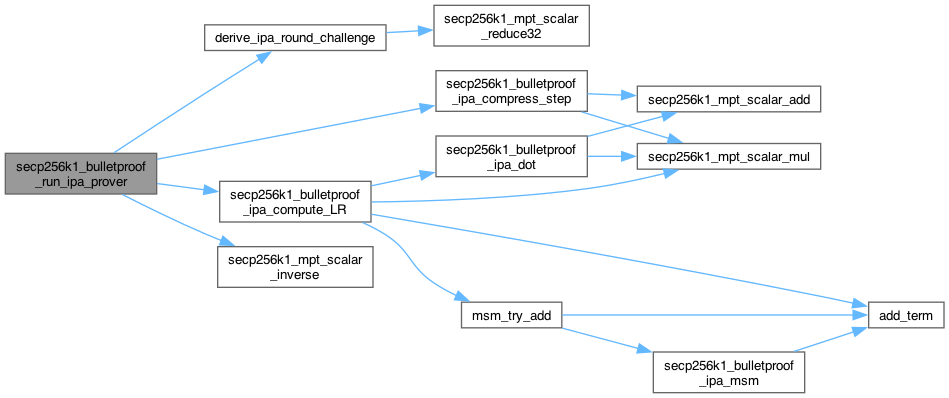

Here is the call graph for this function:

Here is the caller graph for this function:

◆ secp256k1_bulletproof_verify_agg()

int secp256k1_bulletproof_verify_agg	(	const secp256k1_context *	ctx,
		const secp256k1_pubkey *	G_vec,
		const secp256k1_pubkey *	H_vec,
		const unsigned char *	proof,
		size_t	proof_len,
		const secp256k1_pubkey *	commitment_C_vec,
		size_t	m,
		const secp256k1_pubkey *	pk_base,
		const unsigned char *	context_id )

Verifies an aggregated Bulletproof range proof for m commitments.

Checks that the values committed in commitment_C_vec are all within the [0, 2^64) range.

Usage Notes:

The generator vectors G_vec and H_vec must have length n = 64 * m.
The commitment array commitment_C_vec must contain m elements. (For a single proof where m=1, pass a pointer to the single commitment).
To bind commitments to the proof transcript, include them in the context_id hash before calling this function.

Serialized Proof Format:

A, S, T1, T2 (4 * 33 bytes)
L_vec (rounds * 33 bytes)
R_vec (rounds * 33 bytes)
a, b (2 * 32 bytes)
t_hat, tau_x, mu (3 * 32 bytes)

Total Size: 292 + (66 * rounds) bytes, where rounds = log2(64 * m).

Returns 1 if valid, 0 otherwise.

Definition at line 1715 of file bulletproof_aggregated.c.

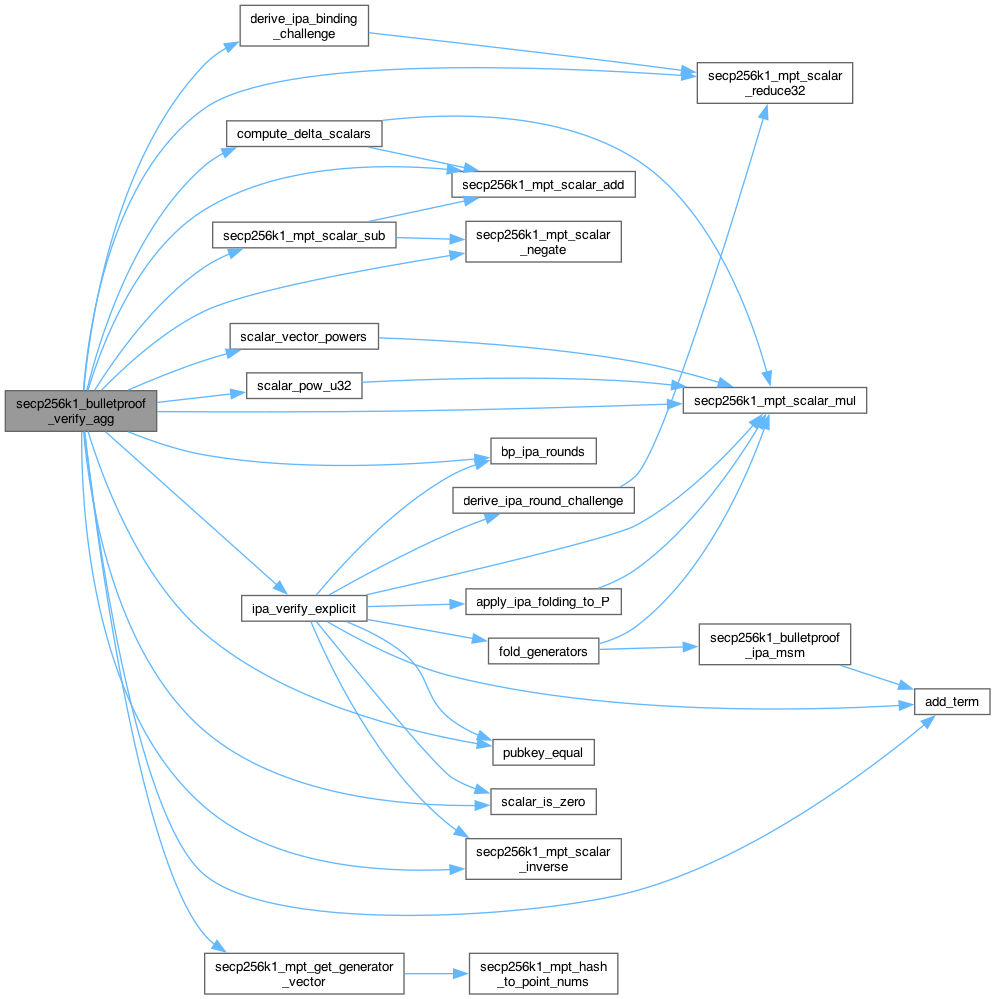

Here is the call graph for this function:

◆ secp256k1_mpt_scalar_sub()

void secp256k1_mpt_scalar_sub	(	unsigned char *	res,
		const unsigned char *	a,
		const unsigned char *	b )

static

Computes modular subtraction of two scalars: res = a - b (mod q).

Definition at line 124 of file bulletproof_aggregated.c.

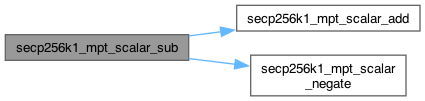

Here is the call graph for this function:

Here is the caller graph for this function:

Macros

Functions

Detailed Description

Macro Definition Documentation

◆ BP_TOTAL_BITS

◆ BP_VALUE_BITS

◆ SER_PT

Function Documentation

◆ add_term()

◆ apply_ipa_folding_to_P()

◆ bp_ipa_rounds()

◆ compute_amount_point()

◆ compute_delta_scalars()

◆ compute_z_pows_j2()

◆ derive_ipa_binding_challenge()

◆ derive_ipa_round_challenge()

◆ fold_generators()

◆ generate_random_scalar()

◆ ipa_verify_explicit()

◆ msm_try_add()

◆ pubkey_equal()

◆ scalar_is_zero()

◆ scalar_pow_u32()

◆ scalar_vector_add()

◆ scalar_vector_mul()

◆ scalar_vector_powers()

◆ secp256k1_bulletproof_add_point_to_accumulator()

◆ secp256k1_bulletproof_compute_vectors_block()

◆ secp256k1_bulletproof_create_commitment()

◆ secp256k1_bulletproof_ipa_compress_step()

◆ secp256k1_bulletproof_ipa_compute_LR()

◆ secp256k1_bulletproof_ipa_dot()

◆ secp256k1_bulletproof_ipa_msm()

◆ secp256k1_bulletproof_point_scalar_mul()

◆ secp256k1_bulletproof_prove_agg()

◆ secp256k1_bulletproof_run_ipa_prover()

◆ secp256k1_bulletproof_verify_agg()

◆ secp256k1_mpt_scalar_sub()
